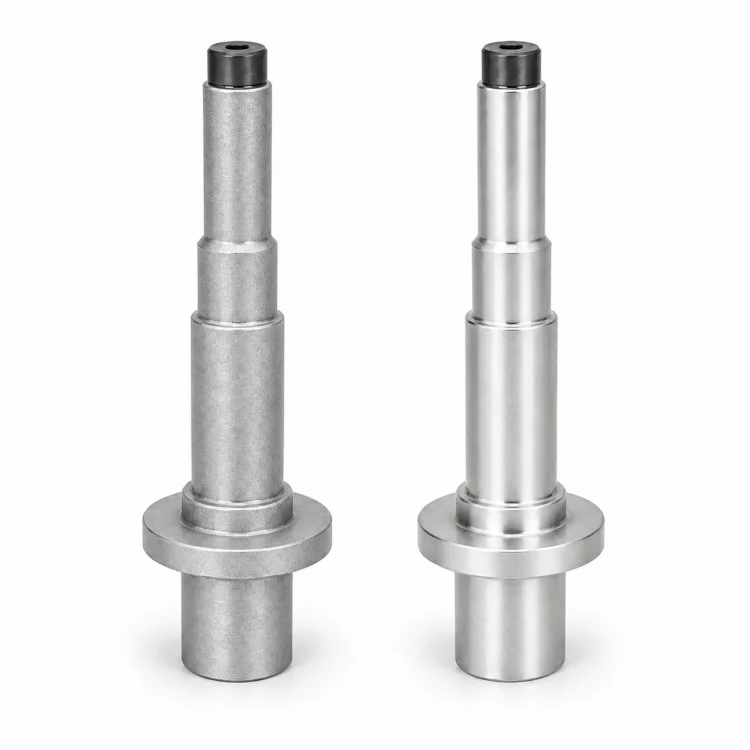

For industrial equipment OEMs, custom precision shaft procurement often faces common bottlenecks: unqualified prototype fitting, inconsistent dimensional accuracy between batches, unstable delivery cycles, and scattered suppliers for processing and testing. To solve these industry pain points, Precision CNC Machined Flanged Stepped Shaft one-stop manufacturing service from Xiamen Xiangxing Xin Industry and Trade Co., Ltd. provides full-lifecycle support from prototype verification to formal mass production. We deliver stable, high-precision and cost-effective custom shaft solutions for global industrial automation and mechanical equipment manufacturers.
Small-batch trial production cannot achieve true assembly matching, resulting in repeated design modifications
Different batches of shafts have deviations in coaxiality, flange verticality and stepped size, affecting equipment assembly stability
Machining, grinding, heat treatment and surface treatment require multiple suppliers, leading to uncontrollable quality and cycle
Blind full-scale high precision increases costs, while insufficient key precision causes equipment operation failure
We support single-piece and small-batch prototype production according to customer 2D drawings, 3D models or physical samples. Engineers optimize the flange positioning reference, stepped journal tolerance and end structure in advance to ensure the CNC Machined Flanged Stepped Shaft perfectly matches bearings, sleeves and coupling parts, completing assembly verification in the shortest cycle.
After prototype performance and assembly effects are confirmed, we solidify the complete processing route, clamping scheme and inspection standard. All key dimensions including journal diameter, shoulder spacing, flange thickness and axial positioning tolerance are unified to ensure zero difference between mass-produced products and qualified prototypes.

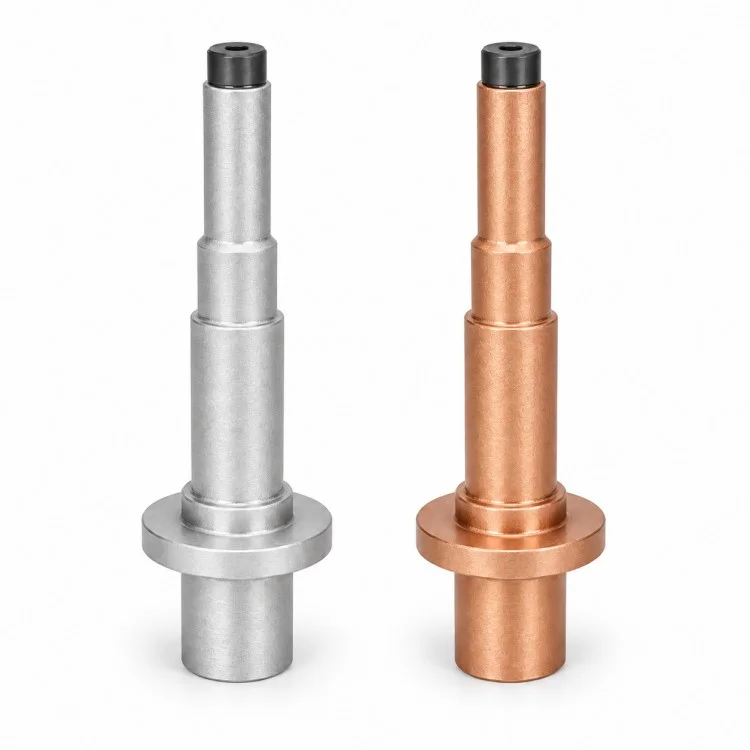

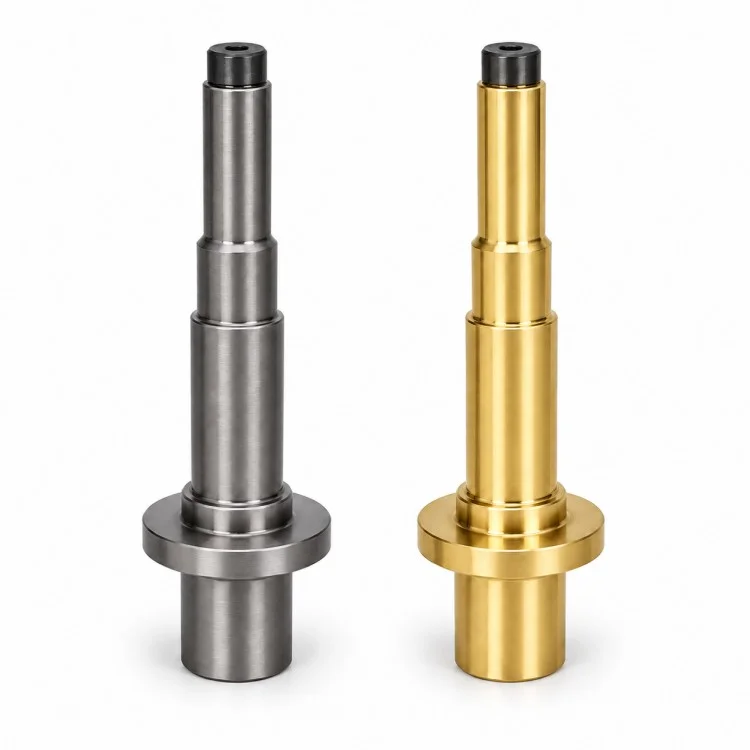

According to OEM equipment working conditions, we selectively process stainless steel, carbon alloy steel, aluminum alloy, brass and other materials. Cooperated with targeted heat treatment and surface treatment, the Precision CNC Machined Flanged Stepped Shaft achieves stable hardness, corrosion resistance and wear resistance for long-term industrial operation.
From raw material incoming inspection, semi-finished size calibration to finished product full-dimensional testing, we adopt CMM, roughness tester, micrometer and other professional equipment to monitor key indicators such as journal coaxiality, flange flatness and axial spacing, ensuring every batch of products meets OEM precision standards.
High precision for key positioning surfaces and reasonable tolerance for non-critical structures, balancing precision and procurement cost
Integrated CNC turning, mill-turn and finishing processes to shorten delivery cycle
Provide free structural optimization suggestions to improve equipment assembly efficiency and operational stability
Our customized Precision CNC Machined Flanged Stepped Shaft is widely used in various industrial equipment scenarios requiring precise rotary positioning and stable assembly, including automated production equipment, precision testing instruments, transmission machinery, packaging equipment and intelligent industrial assembly lines.
