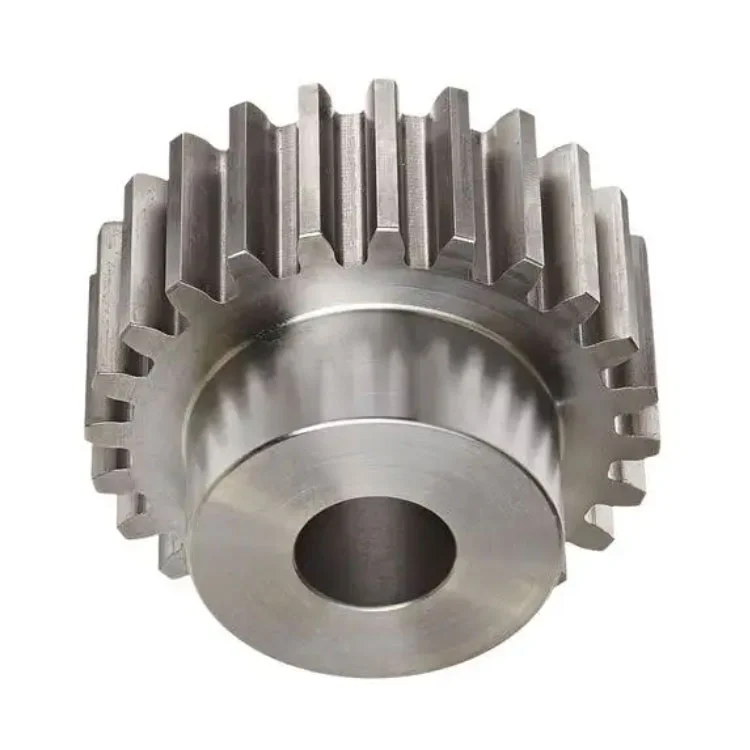

CNC Metal Gears Machining

Xiamen Xiangxingxin Industry and Trade Co., Ltd. needs to pay attention to the following parameters during the design process of CNC Metal Gears Machining: the geometric shape design of the gear, including the number of teeth, pressure angle, tooth profile curve and other parameters. According to the material required by the customer, the 3D drawing is transferred to the CNC numerical control programming, and the machining program is written, including parameters such as cutting path, machining speed, cutting depth, etc.

Product features

High precision: CNC machining technology ensures the precision manufacturing of gears and meets various high-precision transmission requirements. Strong load-bearing capacity: Metal gears are made of solid materials and have excellent load-bearing capacity, suitable for high-load and high-speed working environments. High transmission efficiency: The surface of the metal gear is precisely machined, the tooth surface is smooth, the meshing is tight, and the transmission efficiency is high. Any defects or errors caused by the above production are adjusted and corrected in a timely manner to ensure product quality, so that customers can buy our products with confidence and have excellent after-sales service.

Basic product introduction

CNC metal gears are high-precision and high-efficiency industrial parts, widely used in mechanical transmission systems such as automobiles, ships, aircraft, machine tools, etc. This product is processed by advanced computer numerical control (CNC) technology. CNC Metal Gears Machining plays an important role in today's field. It also performs well in occasions that require high-precision transmission, such as precision machine tools, medical equipment, etc.

Xiamen Xiangxingxin Industry and Trade Co., Ltd. 's CNC Metal Gears Machining is generally made of high-quality alloy steel materials such as 45 steel and aluminum alloy. These materials can be quenched, tempered or vacuum treated, etc., and these surface quenching and tempering treatments can meet the customer's hardness requirements. CNC Metal Gears Machining also has high precision, strong load-bearing capacity and high transmission efficiency, which can make metal gears perform at the best state in high-speed operation during equipment operation.

Things to note during the production process:

CNC Metal Gears Machining production process should focus on three points: 1: The accuracy of the gear is the most important. The basic requirements for gear processing accuracy include pitch deviation, gear ring radial runout tolerance, and tooth tolerance. When the size reaches 7-level precision gears, the teeth should be chamfered and the root boss should be strictly prevented.

2: Raw material quality control. Only by selecting raw materials with guaranteed quality can good products be produced. In this way, the heat treatment deformation during processing can be adjusted to improve the quality of tooth processing. 3: To prevent heat treatment deformation, the gear blank is rough-processed and made into a fine forging after processing. After normalizing or quenching and tempering, the steel parts become soft for cutting processing; the mechanical properties of the steel are improved. Each of our CNC Metal Gears Machining is carefully designed, manufactured, and discussed with customers about the best process before production. The raw materials of the products are purchased according to the standards of various countries, and the needs of different customers are different.

Product application scenarios:

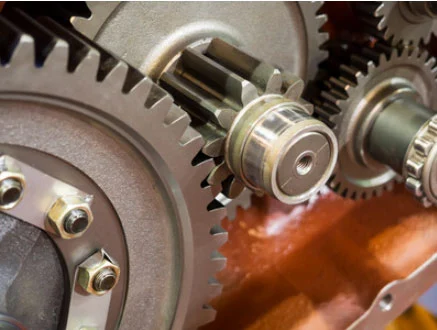

CNC Metal Gears Machining is mainly used in machine tools and engineering machinery industries, especially in aircraft transmission systems, such as engines, reducers and other aerospace industries, where gear transmission mechanisms play a vital role. For example, aluminum alloy gears used in automobile transmission systems, such as transmissions and differentials, can effectively reduce automobile weight, improve fuel efficiency, ensure product stability, etc. Its excellent performance and wide range of applications make this product very important in the machinery manufacturing industry.
