OEM mechanical designers often face a key decision during equipment development: pick an Precision CNC Machined Open-Side Cylindrical Housing or a conventional closed enclosure. The structural difference between these two housings greatly affects assembly efficiency, on-site inspection, component adjustment and overall mechanical performance. Xiamen Xiangxing Xin Industry and Trade Co., Ltd. specializes in custom CNC turn-mill cylindrical housing, helping buyers evaluate which housing style matches their OEM project requirements.

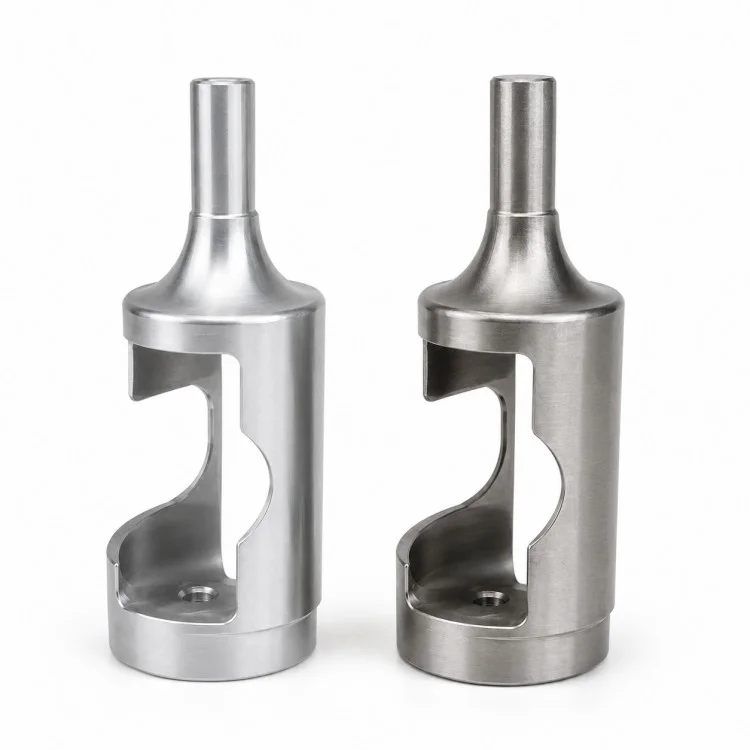

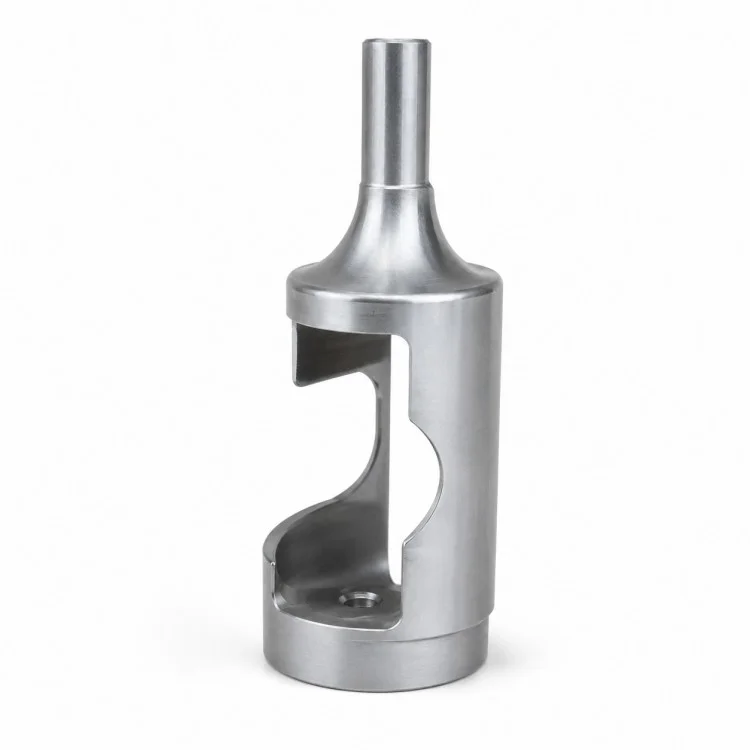

The Precision CNC Machined Open-Side Cylindrical Housing is a one-piece CNC machined component combining turning and milling processes. It features a large side window that exposes the internal cavity, while the opposite wall maintains continuous structural support. The integrated blank is machined into an upper positioning stem, main cylindrical body and bottom mounting reference surface.

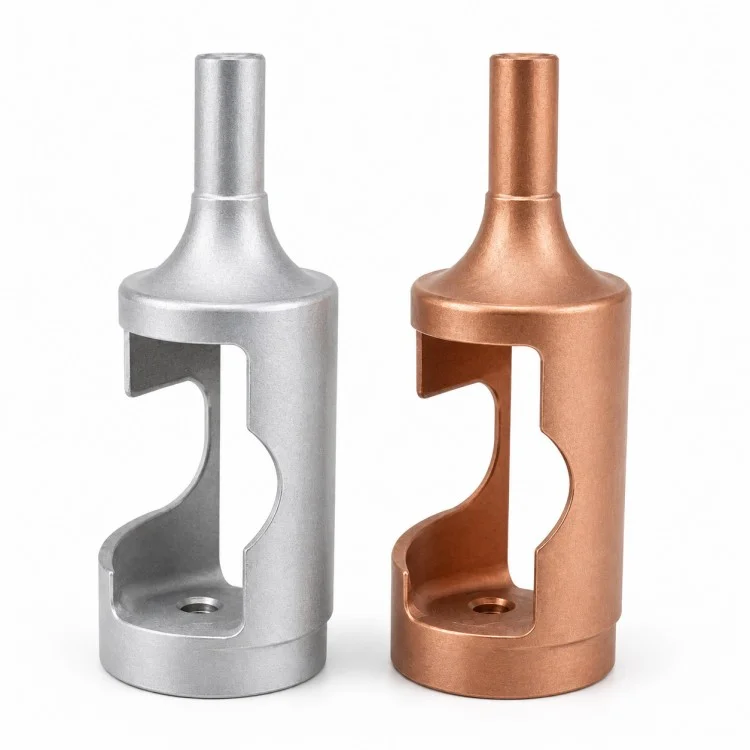

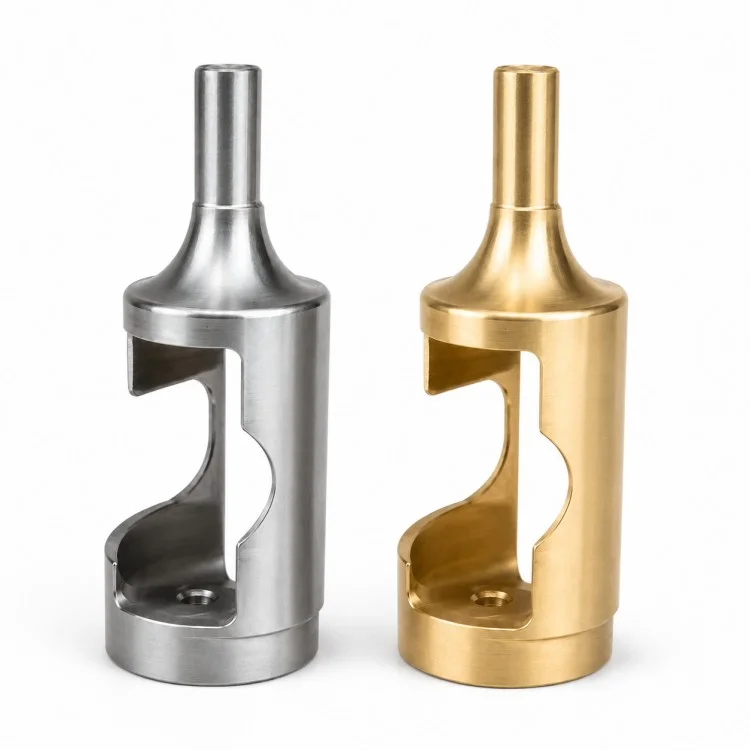

Available materials include aluminum, stainless steel, carbon steel, alloy steel and brass. Critical features such as concentricity, wall thickness, corner radii and mounting holes are controlled precisely according to customer engineering drawings.
This housing is manufactured from a single metal blank. The upper stem and main cylinder can be machined integrally, eliminating assembly joints and improving concentricity consistency. Closed housings are often simple turned parts without complex side cavity features.
| Item | Open-Side Machined Housing | Conventional Closed Housing |
|---|---|---|
| Internal Access | Direct access through side opening | Limited after assembly |
| Assembly Visibility | Better visibility of internal parts | Internal mechanism mostly covered |
| Adjustment Space | Easier tool access and clearance | Usually requires disassembly |
| Part Structure | Integrated open body | Fully enclosed body |
| Machining Difficulty | Higher, needs turn-mill & multi-axis machining | Simpler external turning |
| Weight Reduction | Lighter with material removed on open area | Heavier under same outer size |
| Structural Support | Load concentrated on remaining wall | Support distributed full circumference |
Selecting between open-side cylindrical housing and closed enclosure is not about good or bad, but matching the structure to your equipment’s functional goals.
Choose open-side CNC machined cylindrical housing if your design requires frequent inspection, convenient component adjustment and lightweight integration. If your application needs full circumferential structural strength and sealed internal space, a conventional closed enclosure may be more suitable.
Contact Xiangxing Xin to submit your drawings for technical evaluation and quotation. Our engineers will review concentricity, cavity machining and structural safety for your custom housing project.
