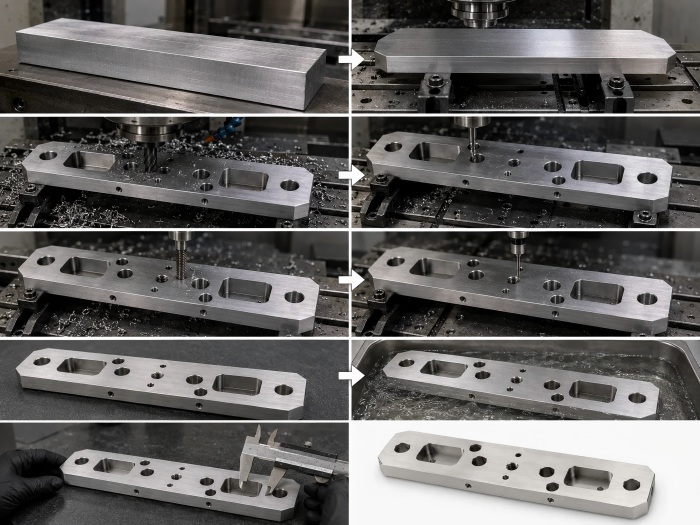

Production of each CNC Machined Mounting Plate begins with a review of the customer’s 2D drawing, 3D model or physical sample. The engineering team confirms material requirements, machining datums, hole locations, thread specifications, critical tolerances and surface-finish requirements before production.
1.Raw-material preparation and blank cutting
2.Datum surface and external profile machining
3.CNC milling of recesses, steps and functional areas
4.Drilling, boring and thread tapping
5.Machining of locating holes and mating surfaces
6.Chamfering and deburring
7.Surface treatment when required
8.Final dimensional and visual inspection
The actual production route is adjusted according to part geometry, order quantity and drawing requirements rather than using one fixed process for every project.
Compared with standard plates produced for fixed installation patterns, a CNC Machined Mounting Plate offers greater flexibility for customized hole locations, thicknesses, slots, locating features and equipment-specific mounting surfaces.
1.More suitable for fixed dimensions and common installation layouts
2.Limited flexibility when hole positions or structures need modification
3.Additional machining may be required for special assembly features
4.Better suited to applications that do not require extensive customization
1.Hole patterns and external profiles can be produced according to drawings
2.Threaded holes, counterbores, slots and locating structures can be integrated
3.Suitable for prototypes, engineering projects and multiple specifications
4.Critical mounting dimensions can be controlled according to specific assembly requirements
The appropriate manufacturing method should be selected according to structure, quantity, material, tolerance and overall project requirements.
1.Material: Selected according to drawing and application requirements
2.Overall Size: Customized according to approved drawings
3.Plate Thickness: Drawing-based production
4.Hole Configuration: Customized diameter, quantity and location
5.Thread Specification: Produced according to customer requirements
6.Machining Method: CNC milling, drilling, boring, tapping and finishing
7.Surface Finish: Selected according to material and operating environment
8.Tolerance: Controlled according to critical drawing dimensions
9.Customization: 2D drawing, 3D model or physical sample
10.Order Type: Prototype, small batch and repeat production
For components with several mounting and locating positions, the relationship between holes, edges, datums and mating surfaces is reviewed before machining to support consistent assembly.
Yes. Hole diameter, quantity, spacing, threaded features and locating positions can be manufactured according to the approved engineering drawing.
Yes. Suitable machinable metals can be evaluated according to strength, weight, corrosion resistance and actual operating conditions.
Yes. Prototype or small-batch production can be arranged first for dimensional and assembly verification before repeat manufacturing.
Yes. The finishing method can be selected according to the material, appearance requirements and application environment.
Please provide the drawing or 3D file, material, quantity, tolerances, surface finish and critical inspection requirements. For long-term sourcing of CNC Machined Mounting Plate, information about the actual installation environment and key positioning dimensions can also help u
| Factory Capability | Value for Buyers |
| Engineering-Based Customization | Machining solutions developed around drawings and actual assembly requirements |
| Multi-Axis CNC Capability | Turning, milling, turn-mill, 3-axis, 4-axis and 5-axis machining available |
| Prototype to Production | Support from sample verification to repeat manufacturing |
| Complex-Part Planning | Datums, setups and machining sequences reviewed before production |
| Drawing-Based Inspection | Critical dimensions and functional areas checked against approved requirements |
| Material Flexibility | Different machinable metals evaluated according to application |
| OEM / ODM Support | Structure, dimensions and functional features can be customized |
| Direct Technical Communication | Engineering and production requirements can be discussed more efficiently |
