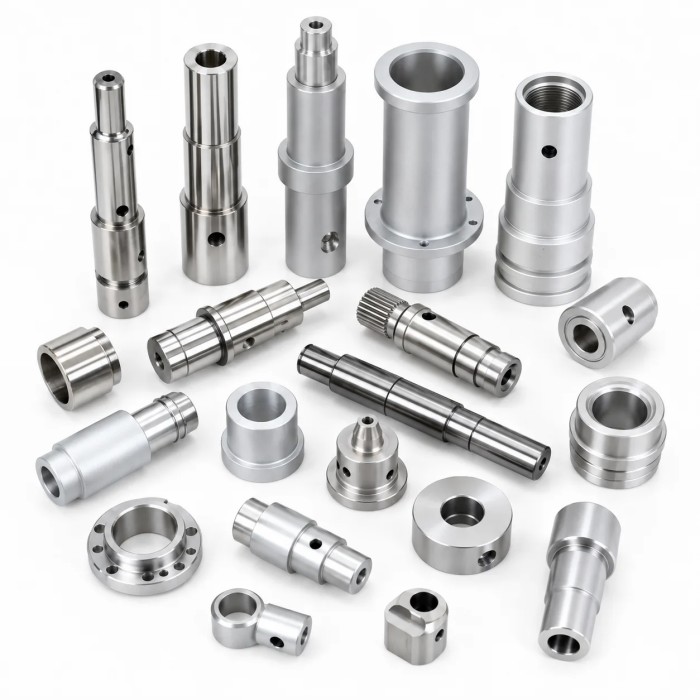

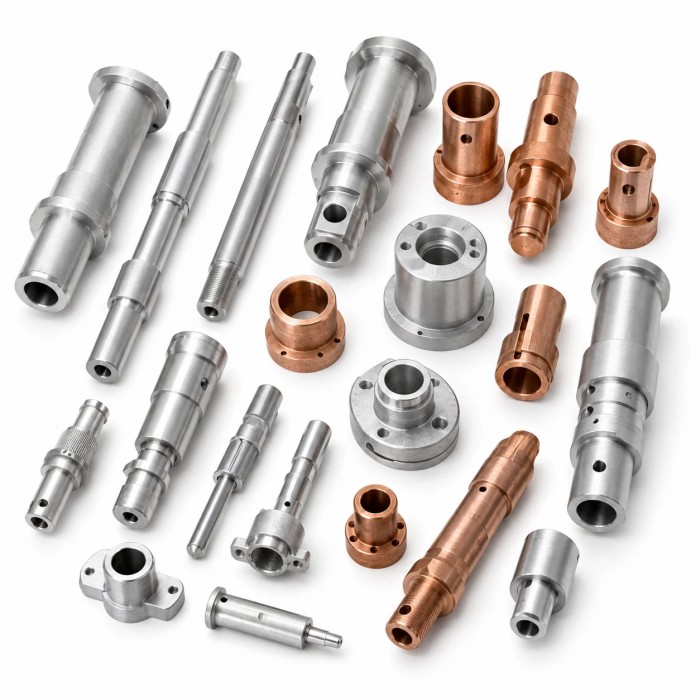

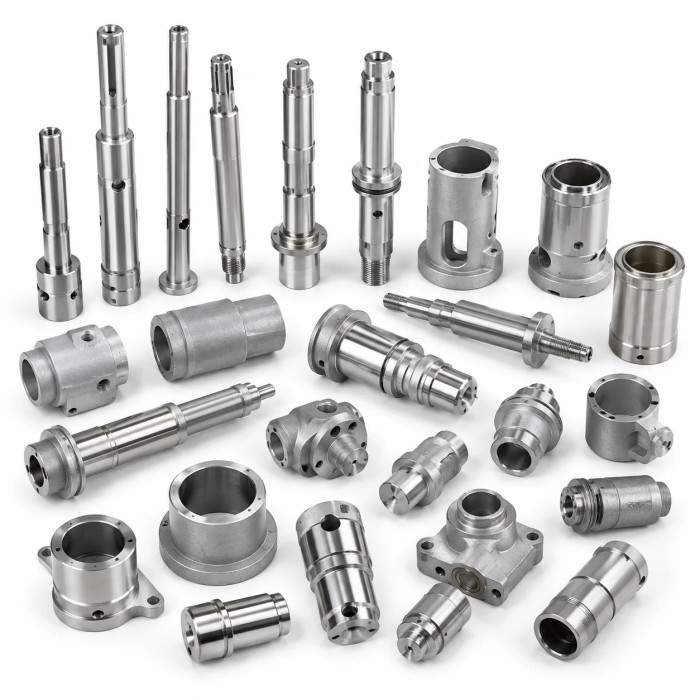

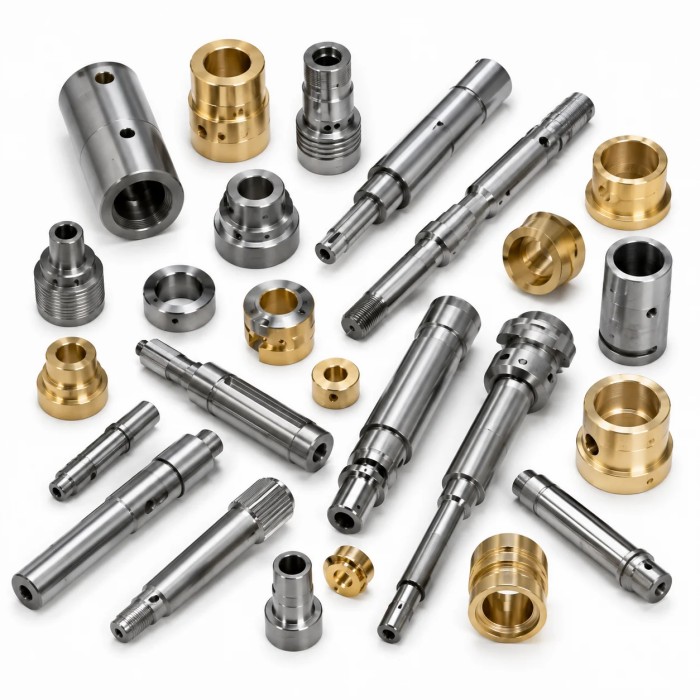

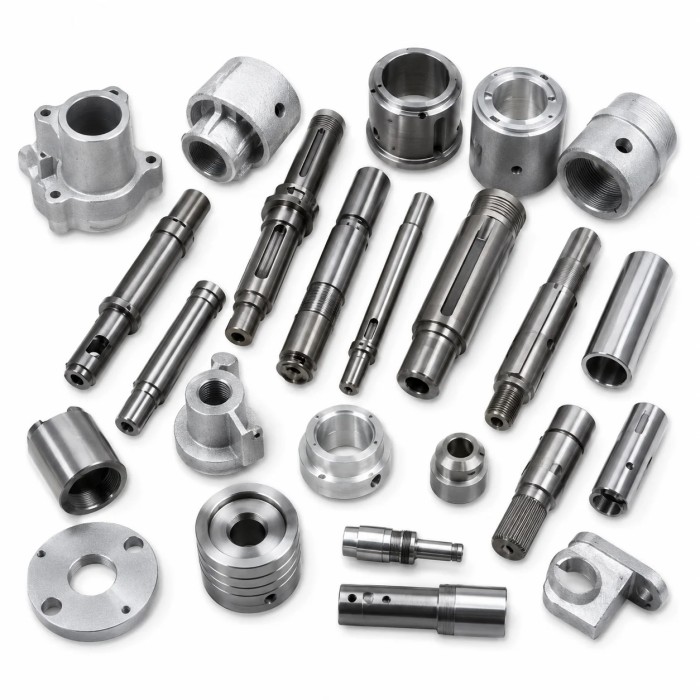

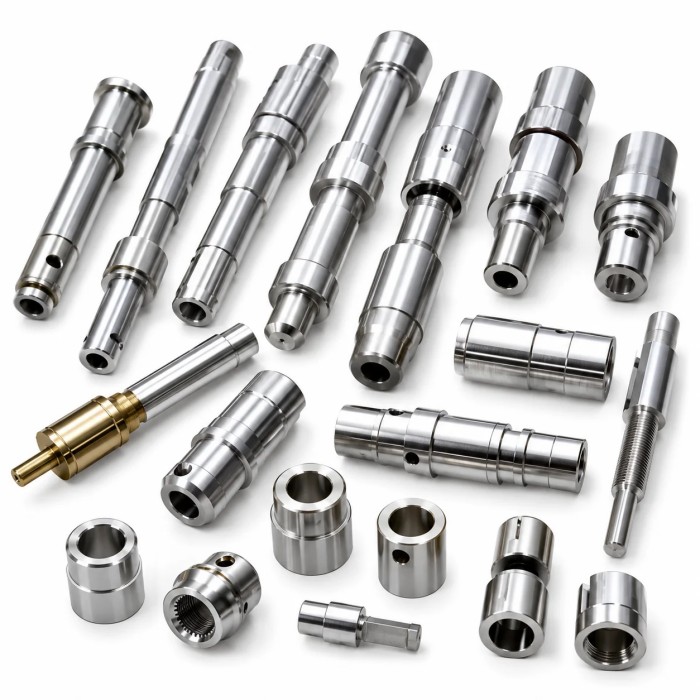

Spindle Shafts

Xiamen Xiangxing Xin Industry and Trade Co., Ltd. provides customized Spindle Shafts based on 2D drawings, 3D models, and physical samples for machine tools, automation equipment, rotating assemblies, transmission systems, and other precision mechanical applications.

Product Parameters

For shaft components with several mating diameters or bearing positions, dimensional relationships and machining references are reviewed before production to support stable assembly.

Manufacturing Process

Production of Spindle Shafts normally begins with drawing review and material confirmation. The machining route is then planned around critical diameters, bearing seats, shoulders, threads, grooves, and other functional areas.

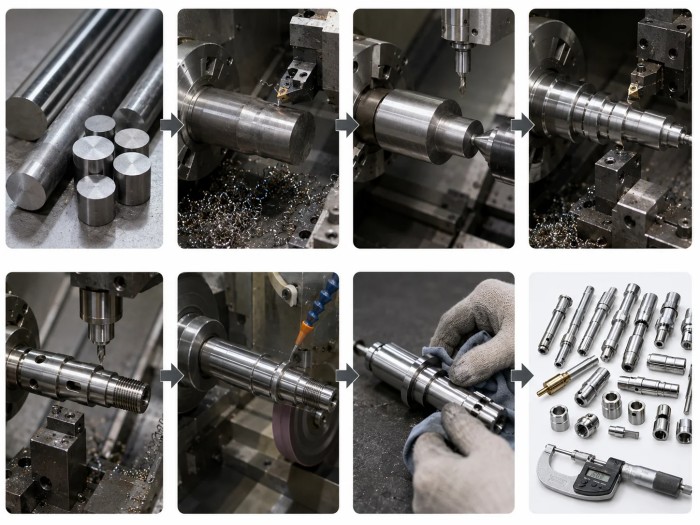

The processing procedure is as follows:

1. Raw material preparation and cutting

2. Rough CNC turning

3. Datum and center preparation

4. Stepped diameter and shoulder machining

5. Thread, groove, keyway or hole machining

6. Precision turning or grinding when required

7. Deburring and surface finishing

8. Final dimensional and visual inspection

For applications requiring several coaxial functional surfaces, the machining sequence and setup strategy are arranged to help maintain positional relationships between critical areas.

Product Comparison

Compared with standard off-the-shelf shafts, customized spindle components provide greater flexibility for special diameters, stepped structures, bearing positions, mounting interfaces, and equipment-specific connection features.

FAQ

Q1: Can shaft diameter and length be customized?

Yes. Diameter, length, stepped sections, shoulders, threads, grooves, and locating features can be manufactured according to the approved drawing.

Q2: Can bearing seats and mating diameters be precision machined?

Yes. Critical bearing and mating areas can be processed according to the specified dimensional and surface requirements.

Q3: Can you support prototype production?

Yes. Prototype and small-batch production can be arranged before repeat manufacturing.

Q4: Can different materials and heat-treatment requirements be evaluated?

Yes. Material and subsequent processing requirements can be reviewed according to the drawing and actual working conditions.

Q5: What information is required for quotation?

Please provide the drawing or 3D model, material, quantity, critical tolerances, surface requirements, heat-treatment requirements if applicable, and inspection standards. For repeat sourcing of Spindle Shafts, information about bearing locations, rotational assembly, and critical mating surfaces is also helpful for process evaluation.
