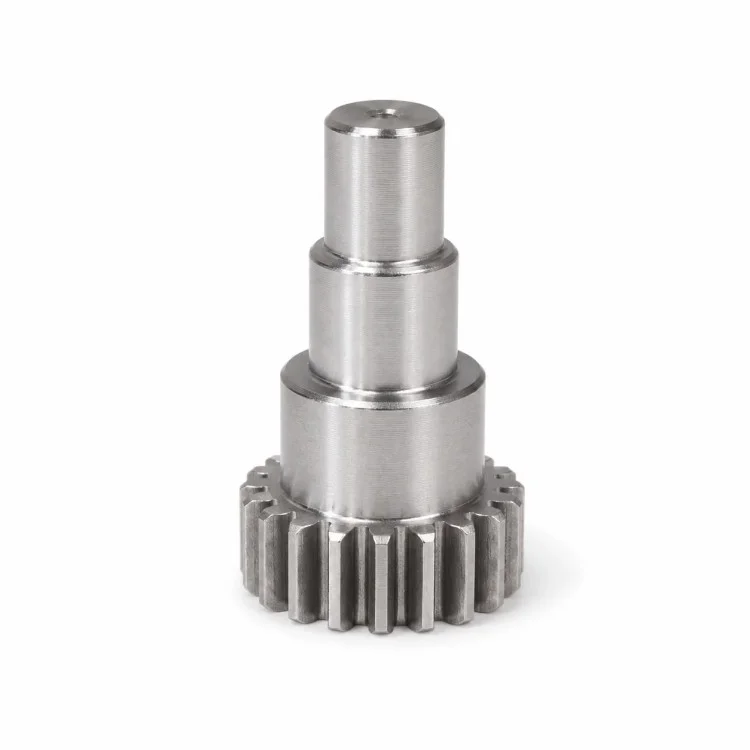

For OEM transmission projects, Xiangxing Xin is a Precision CNC Machined Stepped Spur Gear Shaft manufacturer focused on integrated rotary components where gear engagement and shaft positioning must be controlled together. The spur gear is machined as part of the same component as the stepped shaft, creating a direct mechanical relationship between the tooth section and the rotational journals.

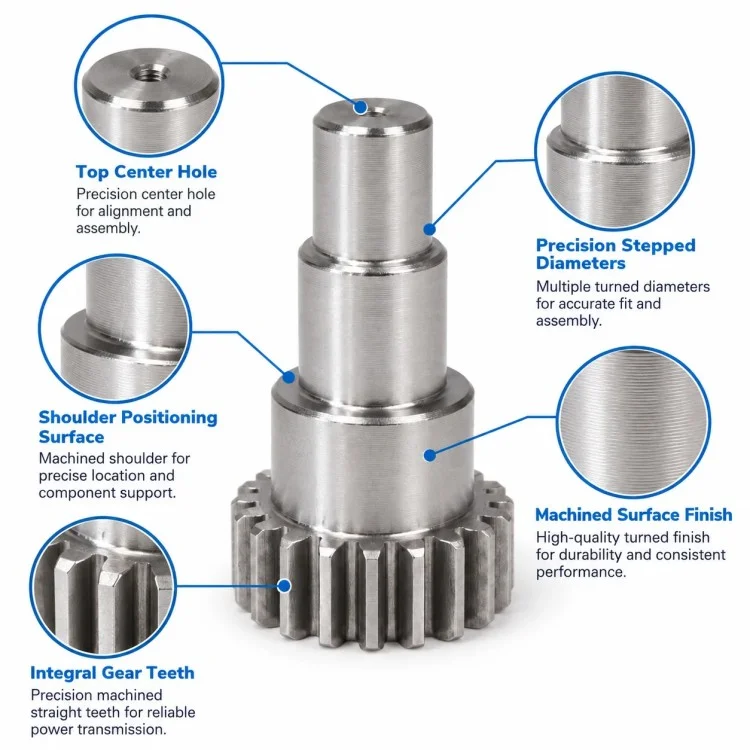

Multiple shaft diameters above the gear can perform different functions within the assembly. One journal may locate a bearing or sleeve, another may provide structural support, while the smaller end section can serve as an additional positioning or connection area. The small axial hole visible at the end can also be produced according to the customer’s functional requirement rather than treated as a standard feature.
A major advantage of this structure is that torque transmission and shaft location are integrated into one workpiece. This avoids adding a separate gear-to-shaft connection where the original machine design requires a one-piece component, but it also means the gear section, journal diameters and axial shoulders must be planned around a consistent datum strategy.

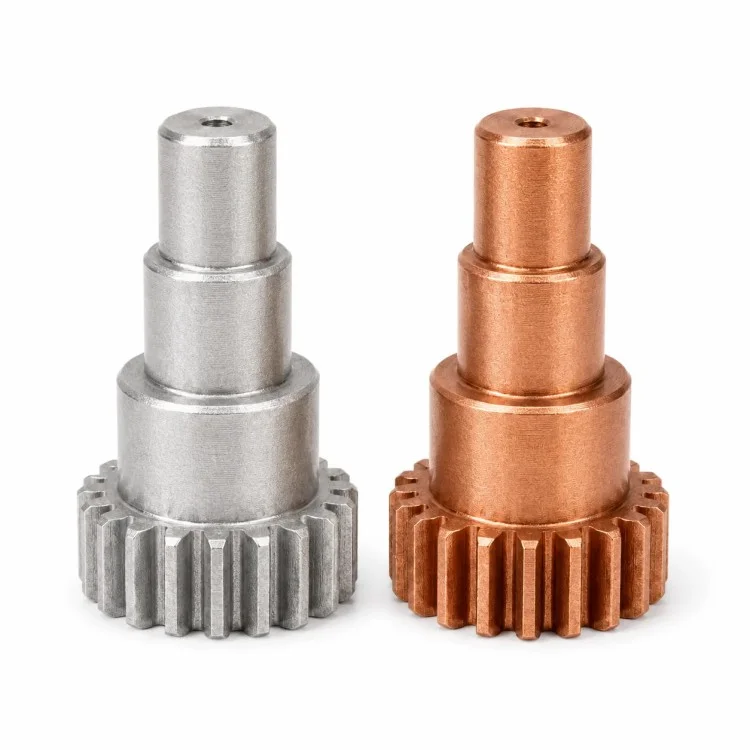

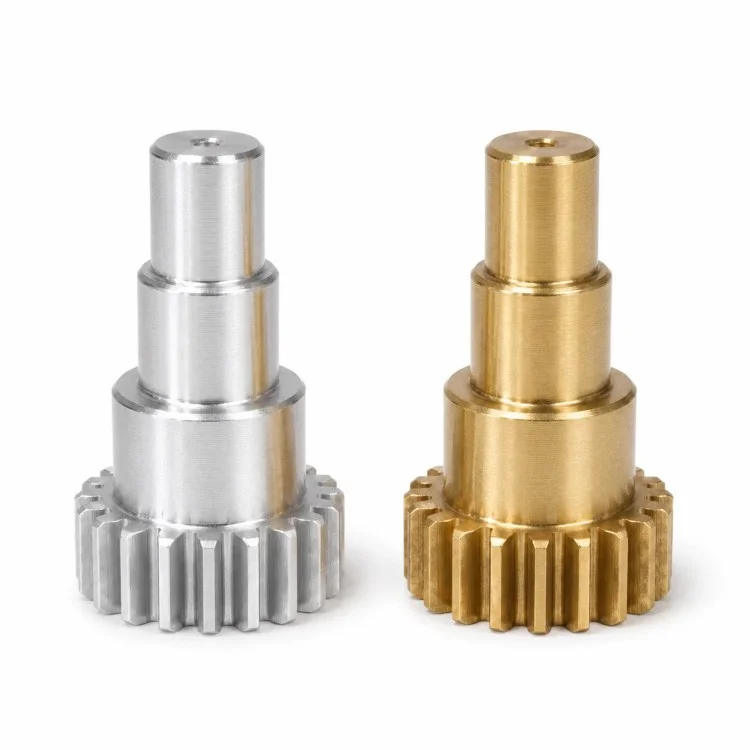

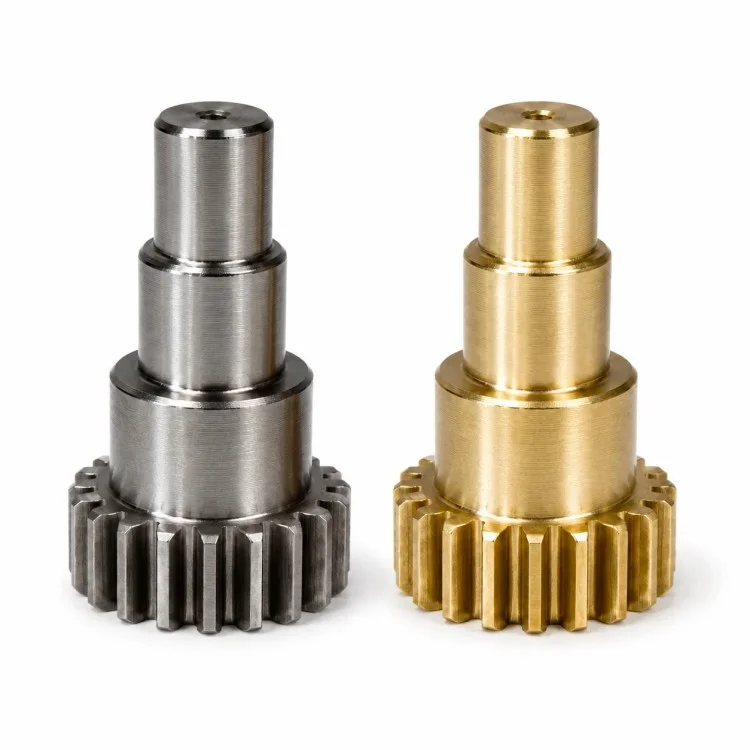

Depending on load, wear and service conditions, suitable stainless steel, carbon steel, alloy steel, aluminum alloy or other machinable materials can be selected. Heat treatment, surface hardening, grinding or coating should only be introduced when required by the drawing and operating conditions.
Xiamen Xiangxing Xin Industry and Trade Co., Ltd. can organize inspection around gear-related dimensions, journal diameters, shoulder spacing, total runout relationships and critical mating areas so the finished component is evaluated as a complete transmission part rather than as a gear and shaft separately.
| Parameter | Details |
| Product Name | Precision CNC Machined Stepped Spur Gear Shaft |
| Brand | Xiangxing Xin |
| Company | Xiamen Xiangxing Xin Industry and Trade Co., Ltd. |
| Product Type | Integrated Stepped Spur Gear Shaft |
| Gear Type | External Spur Gear |
| Tooth Data | According to Customer Drawing |
| Module / DP | According to Gear Specification |
| Number of Teeth | According to Drawing |
| Shaft Structure | Multi-Step Journals |
| Journal Diameters | According to Functional Fits |
| Shoulder Positions | According to Assembly Dimensions |
| End Hole | According to Customer Design |
| Material | Stainless Steel, Carbon/Alloy Steel, Aluminum, etc. |
| Heat Treatment | Available When Specified |
| Grinding | Applied to Selected Journals When Required |
| Surface Treatment | According to Material and Application |
| Production Basis | 2D Drawing / 3D Model / Sample |

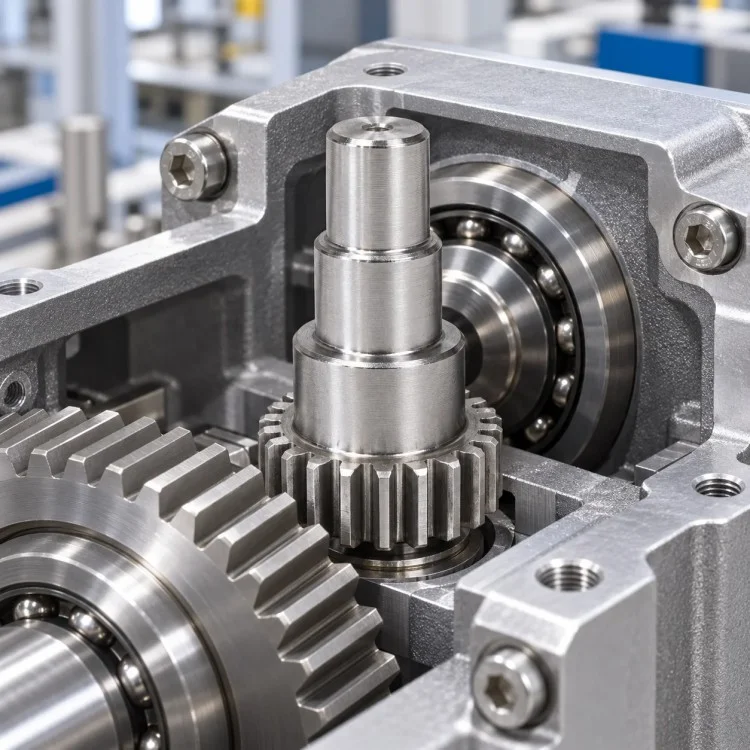

| Typical Application | Gearbox, Automation, Transmission Equipment, OEM Machinery |
For this Precision CNC Machined Stepped Spur Gear Shaft, gear cutting and shaft machining need to be linked through a common rotational datum so that the tooth section remains correctly related to the functional journals.

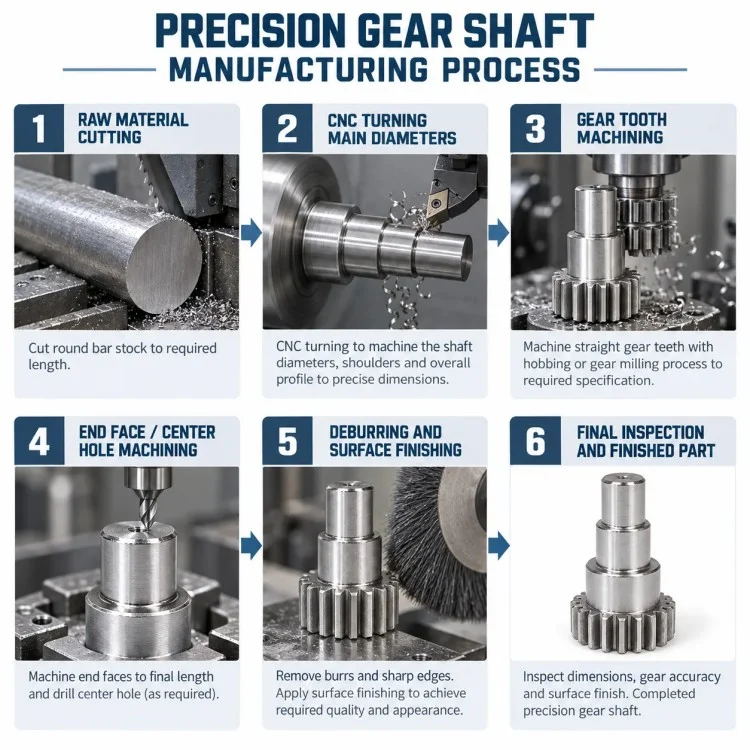

| Process Stage | Main Control Point |
| Drawing & Gear Data Review | Confirm module/DP, tooth count, shaft fits and critical datums |
| Material Preparation | Prepare suitable bar, forged blank or specified raw material |
| Rough Turning | Establish overall shaft profile and gear blank |
| Step Turning | Machine the different journal diameters and shoulder positions |
| Gear Blank Finishing | Prepare the required gear outside diameter and face references |
| Spur Gear Cutting | Produce the external straight teeth according to approved data |
| End Feature Machining | Complete end bore, chamfer or other specified details |
| Optional Heat Treatment | Applied according to strength and wear requirements |
| Finish Turning / Grinding | Restore or finish precision journals where necessary |
| Deburring | Remove burrs from gear edges and shaft transitions |
| Final Inspection | Inspect gear dimensions, journals, axial spacing and runout-related features |
| Comparison Item | Integrated Gear Shaft | Separate Gear + Shaft Assembly |
| Gear/Shaft Relationship | Built into one component | Depends on secondary assembly |
| Connection Interface | No separate hub-to-shaft joint in one-piece design | Requires key, spline, interference fit or other joint |
| Axial Location | Defined directly by machined shoulders | Depends on several assembled parts |
| Component Count | Lower | Higher |
| Assembly Steps | Reduced | Additional gear installation required |
| Gear-to-Journal Datum | Can be controlled during manufacturing | Influenced by gear mounting accuracy |
| Replacement Flexibility | Lower | Separate parts may be replaced individually |
| Best Use | OEM designs requiring integrated transmission | Modular or service-oriented assemblies |
Yes. When the drawing specifies an integral design and the material route is suitable, the gear blank and stepped shaft can be produced from one workpiece.
Yes. Bearing seats, locating journals and general support diameters can each use tolerances appropriate to their actual function.
Please provide module or DP, number of teeth, pressure angle, face width, material, heat treatment, gear quality requirement and mating information when available.
Yes, if the required fit, dimensional stability or surface finish makes grinding necessary.
Yes. Diameter, depth and function should follow the customer's drawing.
Yes. Alloy steel can be considered when the application requires higher strength or specific heat-treatment performance.
Typical critical items may include gear-related dimensions, bearing journals, shoulder distances, gear-to-journal runout and mating surfaces, but the final control plan should follow the customer's drawing.
For integral transmission components, Xiamen Xiangxing Xin Industry and Trade Co., Ltd. applies the Xiangxing Xin process to support Precision CNC Machined Stepped Spur Gear Shaft projects from gear-data review through prototype verification and repeat manufacturing.
Instead of treating the spur gear and shaft as unrelated features, the machining route can be developed around one rotational datum and one functional assembly concept.

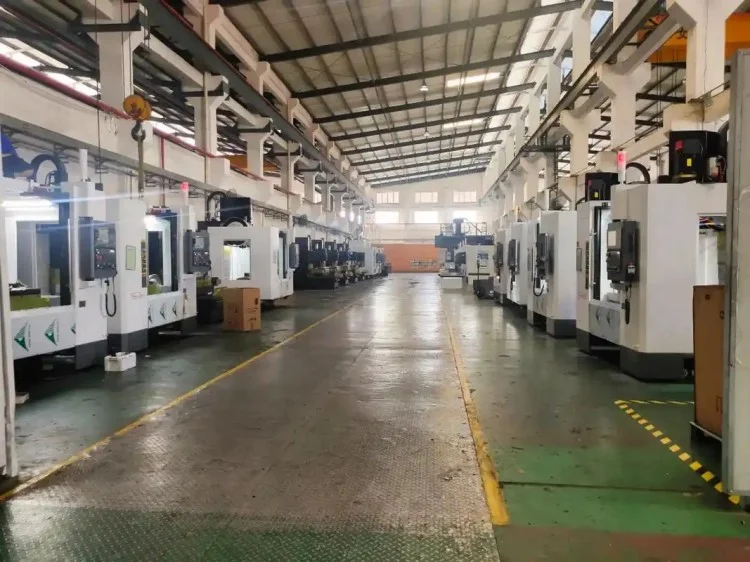

The factory can coordinate multi-step turning, gear preparation, tooth machining and subsequent finishing according to the actual part design.
Bearing seats and locating journals can receive tighter inspection and finishing, while non-critical support sections can use appropriate general tolerances.
When steel parts require hardness or wear resistance, heat treatment can be included in the manufacturing route together with allowance planning for subsequent finishing.
One-piece prototype orders can be supported so gear engagement, shaft fit and equipment assembly can be verified before regular production.
After the first sample is approved, critical shaft dimensions, gear references and inspection points can be retained for later batches to improve consistency.
