For transmission projects, Xiangxing Xin serves as a Precision CNC Machined Spur Gear Shaft manufacturer for integrated rotary components combining a straight-tooth gear section with stepped shaft features. This one-piece arrangement can simplify the interface between the gear and shaft while allowing the journals, shoulders and gear datum to be planned around the same component.

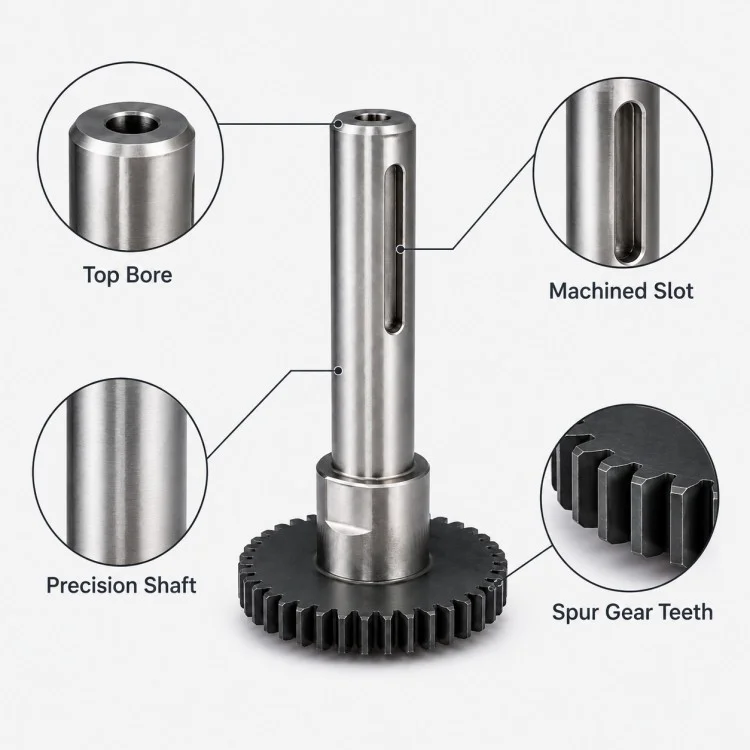

The shaft section may include multiple diameters, bearing or locating journals, an axial hole, a longitudinal slot and other assembly features specified by the customer. For this type of part, attention is not limited to individual dimensions; the relationship between the gear axis, shaft journals and functional mounting surfaces is also important for mating with bearings, couplings or transmission assemblies.
Process planning normally begins with the primary rotational datum. Shaft diameters and shoulders are formed first or reserved for later finishing depending on the drawing, while the gear blank and tooth section are prepared around the required reference. Slot milling, drilling and other secondary features are then arranged so that each feature remains correctly related to the main shaft geometry.

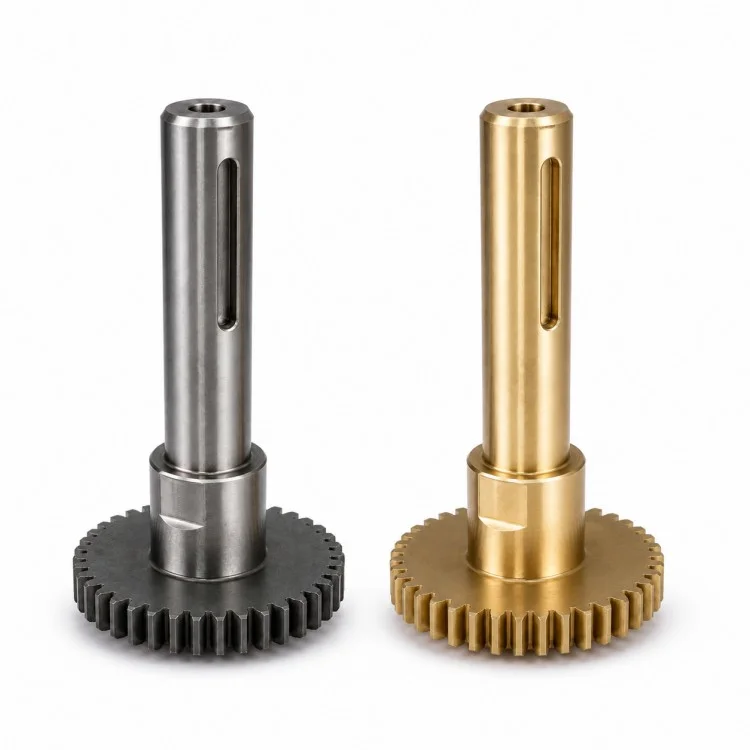

Materials may be selected according to transmitted load, wear requirement, corrosion environment and downstream treatment. Carbon steel, alloy steel, stainless steel, aluminum alloy, brass or other machinable materials can be considered when technically appropriate. Heat treatment, grinding, coating or other finishing operations are introduced only when required by the drawing or actual application.
For production control, Xiamen Xiangxing Xin Industry and Trade Co., Ltd. can focus inspection on shaft diameters, gear-related dimensions, shoulder positions, hole locations, slot geometry and the positional relationship of functional surfaces. This makes the component suitable for OEM machinery where transmission accuracy and repeatable mechanical fit need to be considered together.
The gear section and shaft body are formed as one mechanical component, reducing the need for a separate gear-to-shaft joining interface in applicable designs.
Stepped journals and shoulders can be arranged for locating, bearing support, axial positioning or connection with other transmission elements.
The visible axial slot can be machined to the specified width, length, depth and position when the design requires a drive, locating or assembly feature.
For a Precision CNC Machined Spur Gear Shaft, the positional relationship between the gear section and the main shaft journals can be treated as part of the overall machining and inspection plan rather than as unrelated features.
Material and downstream processes can be selected around actual torque, wear, corrosion and assembly conditions instead of using one fixed material solution for every project.

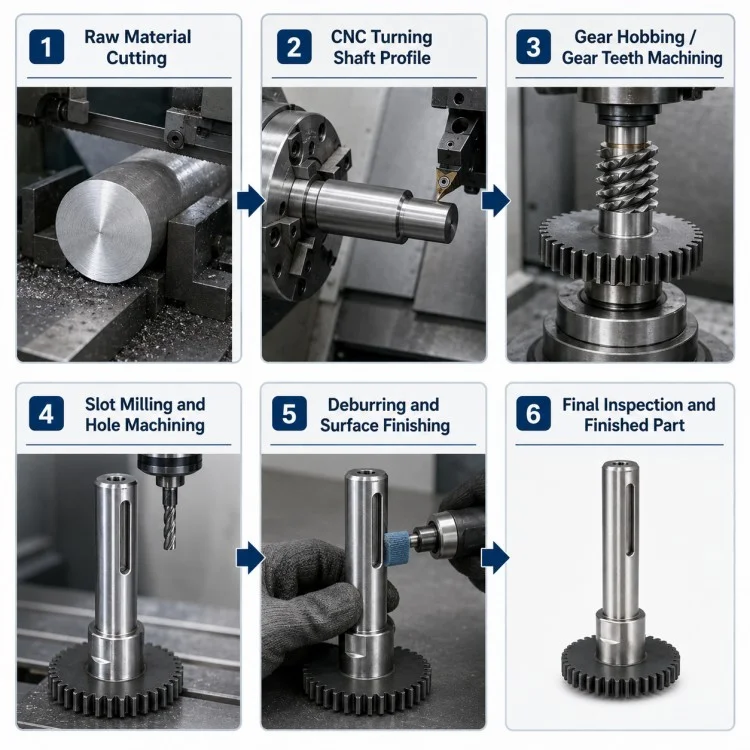

| Process Stage | Main Focus |
| Drawing & Datum Review | Identify gear datum, shaft journals, shoulders, slots and critical mating features |
| Raw Material Preparation | Select suitable stock according to material and finished geometry |
| Rough Turning | Establish basic shaft diameters, shoulders and gear blank geometry |
| Datum Refinement | Prepare rotational references for subsequent gear and shaft machining |
| Gear Tooth Machining | Produce the straight-tooth gear profile according to the specified geometry |
| Shaft Feature Machining | Complete required journals, steps, end faces and axial hole features |
| Slot Machining | Mill the longitudinal slot and other non-rotational features |
| Optional Heat Treatment | Apply only when hardness or mechanical-property requirements are specified |
| Finish Machining / Grinding | Finish critical journals or functional surfaces when required |
| Deburring & Finishing | Remove sharp edges and complete specified surface treatment |
| Final Inspection | Verify gear-related dimensions, shaft journals, slot position and mating features |
| Comparison | Integrated Machined Gear Shaft | Separate Gear + Shaft Assembly |
| Component Structure | Gear and shaft produced as one part | Two or more separate components |
| Assembly Interface | Fewer gear-to-shaft joining interfaces | Requires an additional connection method |
| Datum Planning | Gear and journals can share one overall datum strategy | Datum relationship also depends on assembly |
| Part Count | Reduced component count where applicable | More individual parts |
| Design Flexibility | Shaft, gear and slot features can be coordinated in one drawing | Each component may require separate specifications |
| Maintenance | Entire unit normally treated as one component | Individual parts may sometimes be replaced separately |
| Best Use | OEM designs intended for integrated transmission | Systems designed around replaceable gear/shaft components |
Yes. Please provide the required gear geometry and corresponding technical drawing so that the tooth section and mating requirements can be reviewed together.
Yes. Journal diameters, stepped sections, shoulders and overall length can be manufactured around the actual bearing and assembly interfaces.
Yes. Its width, length, depth and location can follow the approved drawing. The actual function should be confirmed from the customer’s design before production.
No. Heat treatment depends on material, hardness, wear and mechanical requirements. It should only be included when the design or operating condition requires it.
Besides material and quantity, buyers should provide gear data, shaft diameters, overall length, hole and slot dimensions, tolerances, heat-treatment requirements and critical mating surfaces.
Yes. For non-standard transmission parts, prototype verification can be used to confirm machining and assembly requirements before moving into repeat quantities.
Potentially yes, but changing material can affect machining, strength, wear behavior and downstream treatment. The material should therefore be confirmed together with the application requirements.
For integrated transmission parts, Xiamen Xiangxing Xin Industry and Trade Co., Ltd. gives Xiangxing Xin direct manufacturing control over Precision CNC Machined Spur Gear Shaft projects from process review through repeat production.
Instead of treating the gear, journals, shoulders and slot as separate unrelated features, the machining route can be planned around their functional relationship within the same part.
Before production, the team can focus on the dimensions that affect actual transmission and assembly, including shaft journals, tooth section, shoulders, holes, slots and mating surfaces.
OEM projects are not limited to catalogue gear shafts. Shaft length, stepped diameters, slot configuration, end features and gear geometry can follow the approved customer design.
For new transmission components, an initial machining stage can be used to verify fit and functional requirements before establishing repeat-production conditions.
Turning, gear-tooth machining, drilling, slot milling, optional heat treatment and finishing can be coordinated according to the actual part route rather than forcing every project into the same process sequence.
Xiangxing Xin can organize inspection around the features that matter to assembly and transmission instead of relying only on general external dimensions.
