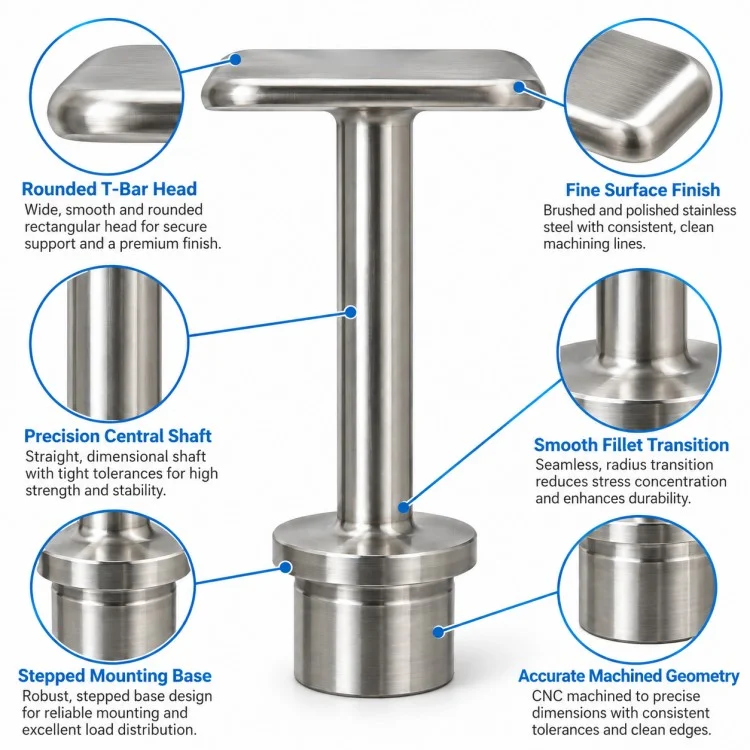

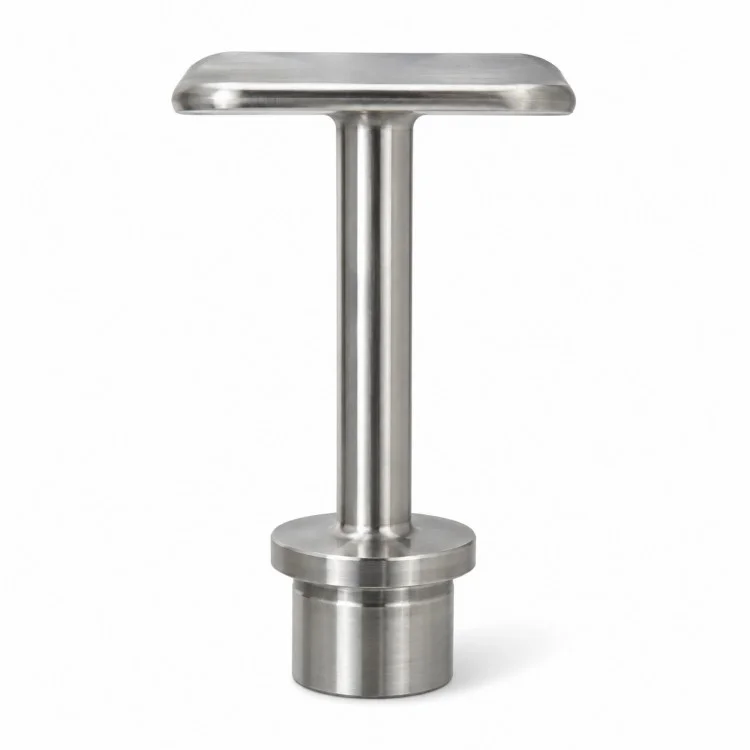

Xiangxing Xin is a supplier of CNC Machined T-Head Stepped Shaft components for custom mechanical assemblies. The design combines a broad rectangular head with a slender round stem and a stepped cylindrical end. Rounded head edges and transitions between sections can be defined to suit the mating structure and handling requirements.
Customization focuses on the relationship between the head, stem, shoulder, and end diameter. Customers can specify overall length, head orientation, shoulder position, transition radii, and the dimensions that control assembly fit. Any required threads, holes, or additional features should be identified in the drawing for review.
The manufacturing route is selected after evaluating the material, geometry, quantity, and finish. Visible surfaces and fitting surfaces can have separate acceptance criteria, helping maintain the required appearance while controlling functional dimensions.
| Parameter | Description |
| Product Structure | Rectangular T-head, round stem, circular shoulder, and cylindrical end |
| Material Options | Stainless steel, aluminum alloy, brass, copper, carbon steel, or alloy steel, subject to engineering review |
| Overall Length | Customized to drawing |
| Head Dimensions | Length, width, thickness, and corner radii specified by customer |
| Stem Diameter | Customized according to structural and assembly requirements |
| Shoulder / End Dimensions | Diameter, thickness, length, and mating fit defined by drawing |
| Geometric Requirements | Straightness, coaxiality, perpendicularity, and head orientation as specified |
| Machining Tolerance | Confirmed for individual features after drawing review |
| Manufacturing Route | CNC turning and milling; blank preparation and assembly method evaluated per project |
| Surface Options | As-machined, polished, blasted, or coated finish, subject to material compatibility |
| Edge Conditions | Deburring, chamfers, and transition radii as specified |
| Inspection | Dimensional, geometric, and appearance checks according to agreed requirements |
| Order Support | Samples, small batches, and repeat production |
The elongated head provides a wider interface than the stem. Its outline, edge radii, and orientation can be adjusted to match the surrounding assembly.
The change in diameter creates a defined shoulder surface. Where used as an assembly datum, its position and perpendicularity can be specified relative to the shaft axis.
Stem diameter and length can be adapted to the available installation space. Straightness and surface requirements should be defined according to the intended function.

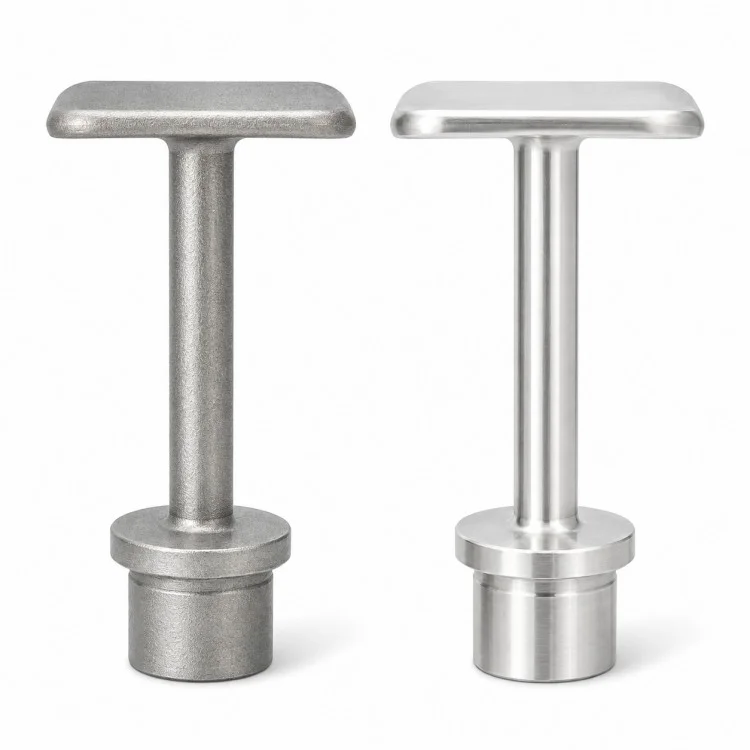

Exposed surfaces can be assigned visual acceptance criteria, while mating diameters and shoulder faces are controlled to the drawing. Finishing allowances are considered where coatings affect the fit.

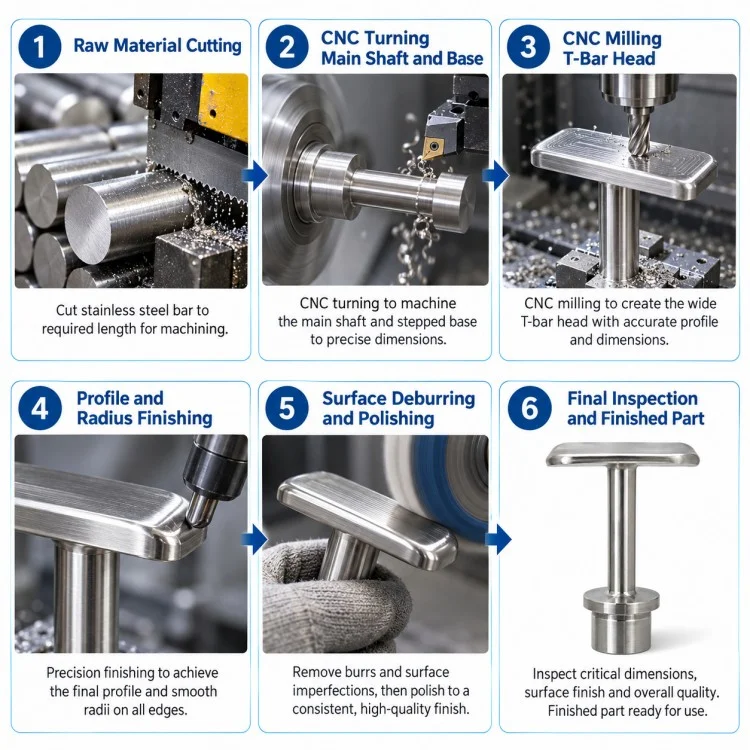

Evaluate the head-to-stem proportions, material, quantity, and loading requirements. Confirm whether the component requires one-piece construction or permits an assembled structure before selecting the production route.
Machine the stem, shoulder, and cylindrical end using suitable workholding. For the CNC Machined T-Head Stepped Shaft, slender-section support and machining sequence are considered to control deflection.
Mill the rectangular head and specified edge features. Establish the required relationship between the head faces, shoulder datum, and shaft axis.

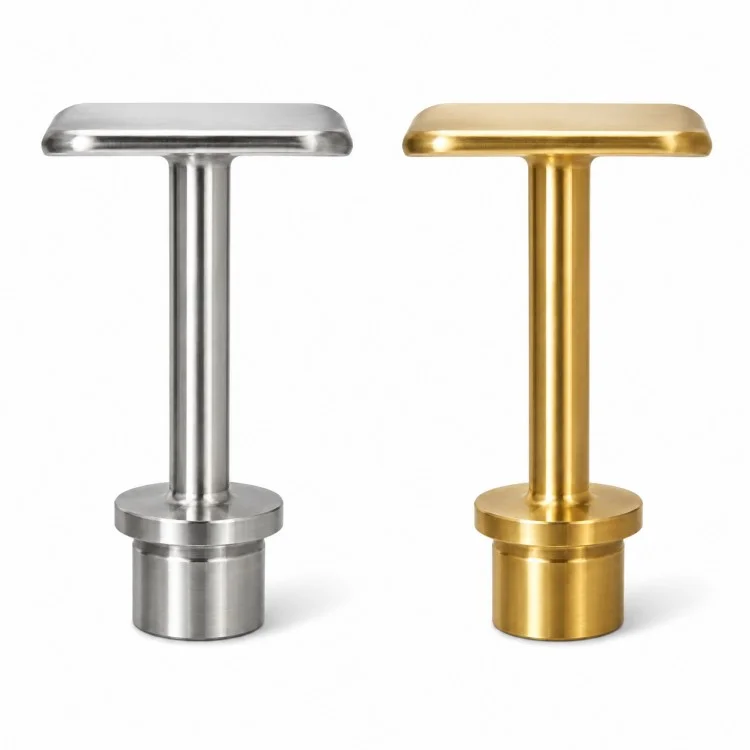

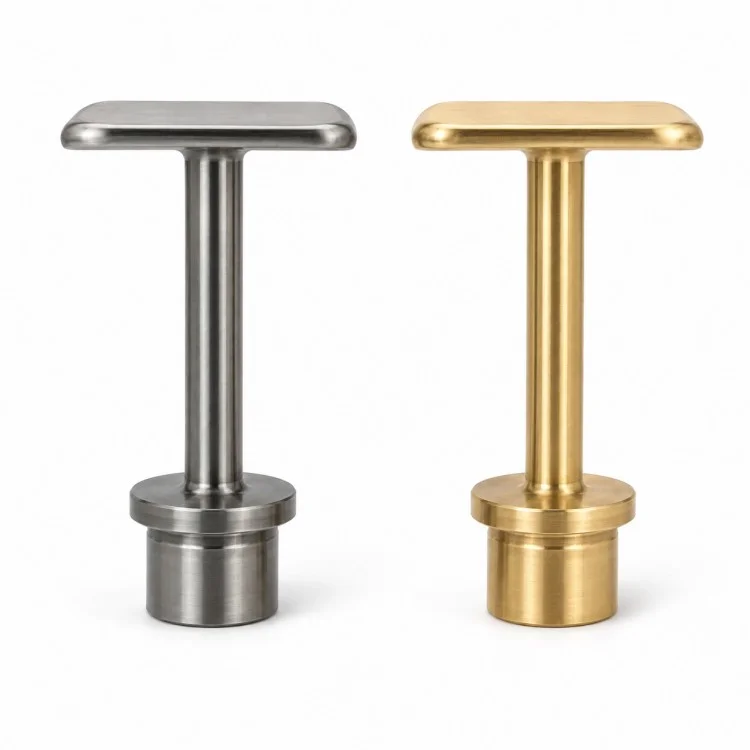

Apply the agreed polishing, blasting, or compatible coating process. Protect or compensate for critical mating surfaces where necessary.
Check critical diameters, lengths, geometric requirements, and surface appearance. Packaging can be arranged to reduce contact marks on exposed heads and stems.
We can evaluate a one-piece machining route after reviewing the dimensions, material, and quantity. If an assembled structure is permitted, please specify the joint requirements. We will confirm the proposed construction before production.
Typical points for review include mating diameters, shoulder position, overall length, stem straightness, and the relationship between the head and shaft axis. The final critical dimensions depend on your assembly.
Yes. Polished, blasted, and compatible coated finishes can be evaluated. Please provide a finish specification or reference sample, and identify surfaces where dimensional fit must be maintained.
Our equipment capability can reach ±0.001 mm on suitable features. The achievable tolerance for this component must be confirmed against its geometry, material, slenderness, and inspection method. The drawing requirements will be reviewed before acceptance.
Xiamen Xiangxing Xin Industry and Trade Co., Ltd. holds ISO 9001 and IATF 16949 quality management system certifications. Material certificates, dimensional inspection reports, and other quality documents can be confirmed according to the order.
Please provide photos, measurement records, or inspection results. Our engineers will review the information against the drawings and production records, with an initial assessment available in as little as two hours when sufficient information is provided. We will then agree on an appropriate solution.
Our engineers assess the connection between the broad head, slender stem, and stepped end, helping clarify datums and manufacturing requirements before production.

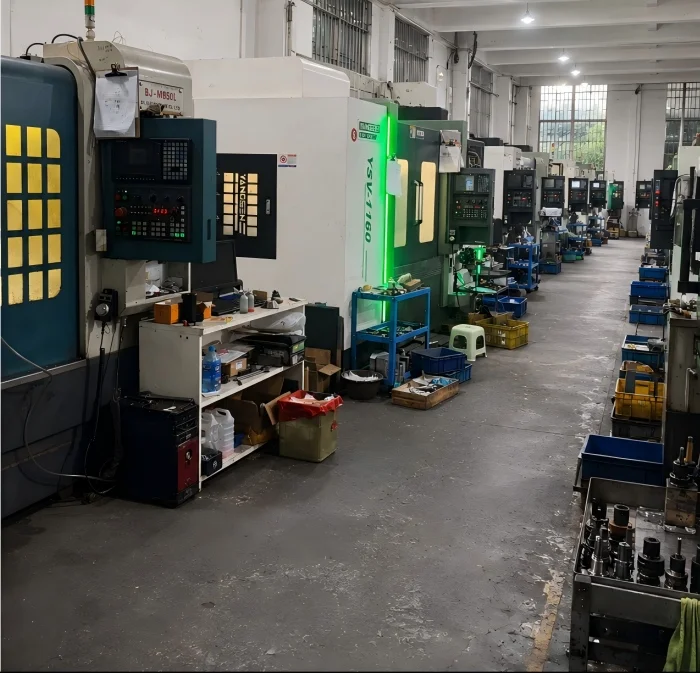

CNC lathes, machining centers, five-axis equipment, and turn-mill capability allow the production route to be selected around the actual geometry and order quantity.
We support discussion of material selection, transition radii, machining access, and finishing allowances to help customers refine manufacturable drawings.
Samples can be used to verify installation fit and appearance before batch production. Agreed drawing revisions and inspection criteria provide a reference for repeat orders.
Send Xiangxing Xin your CNC Machined T-Head Stepped Shaft drawings or samples, together with the quantity and mating requirements, for an engineering review and quotation.
