CNC Machined Bushings

1. Product Features

For buyers sourcing a Manufacturer of CNC Machined Bushings, Xiamen Xiangxing Xin Industry and Trade Co., Ltd. provides drawing-based machining for customized sleeves, collars, spacers and locating components used in mechanical assemblies.

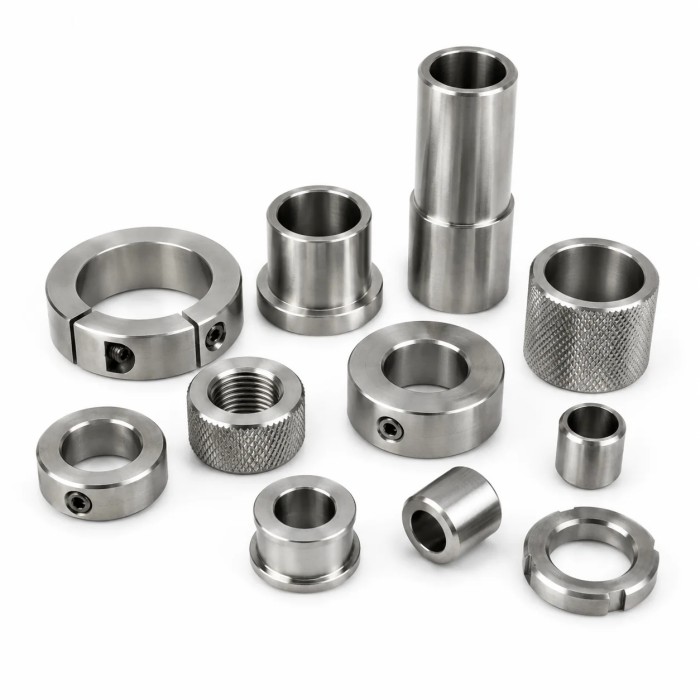

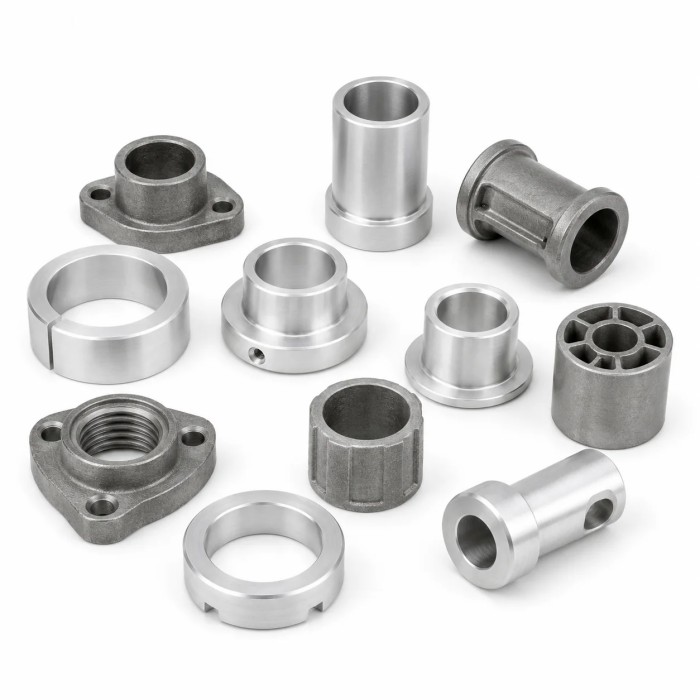

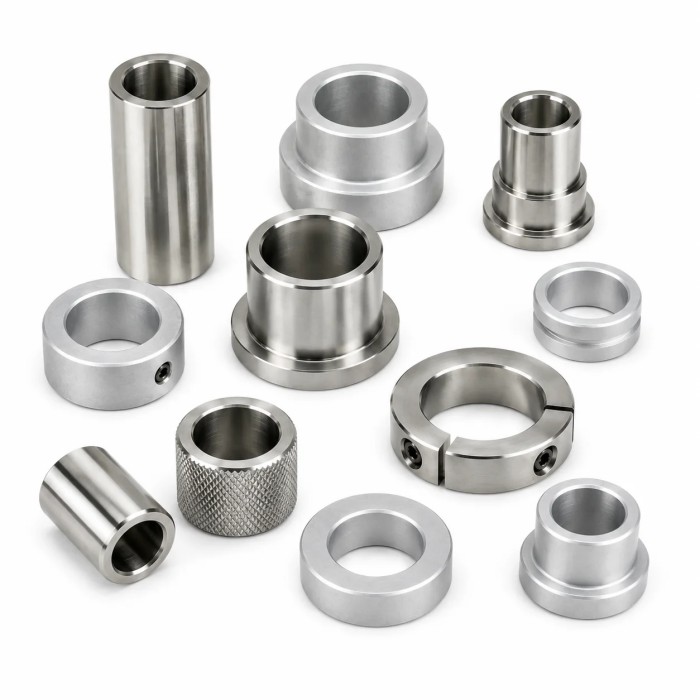

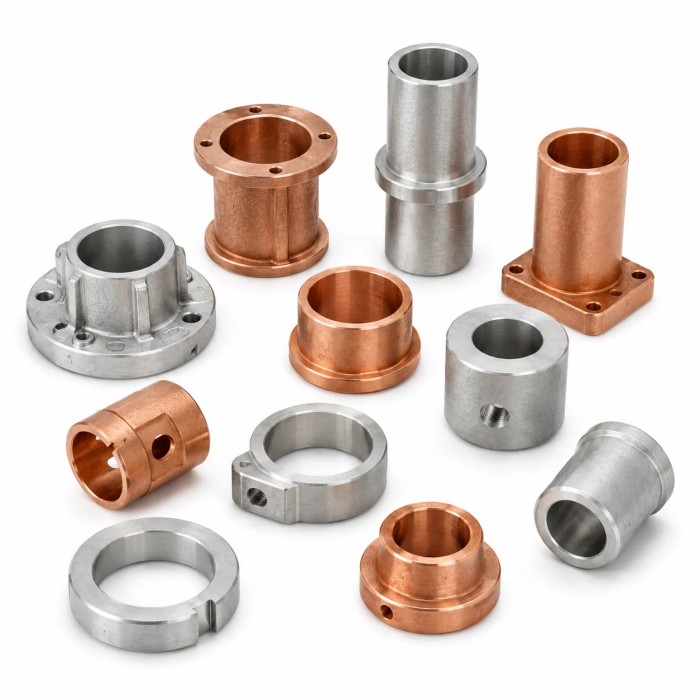

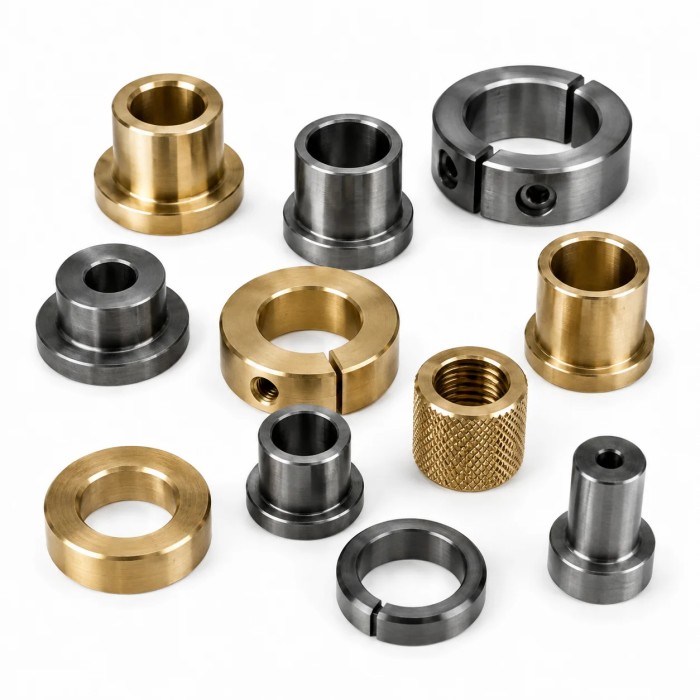

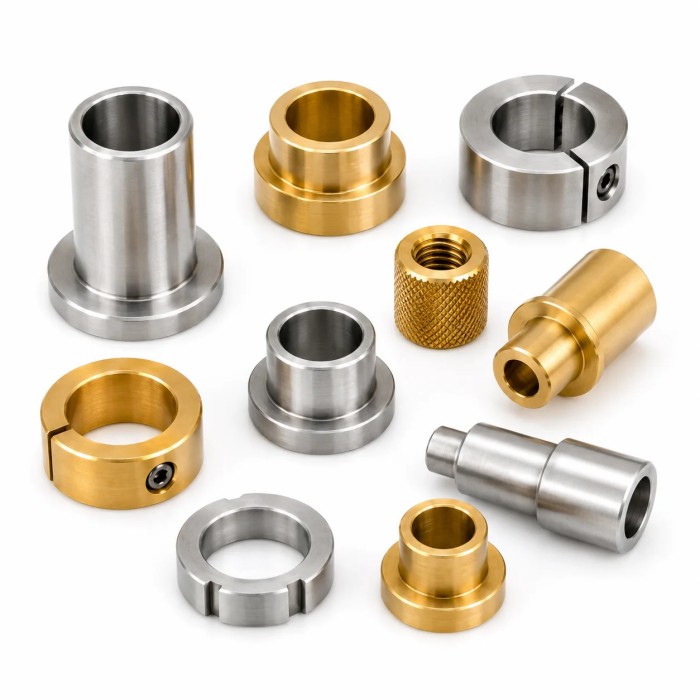

Different structures can be produced according to actual installation requirements, including:

1.Straight cylindrical sleeves for shaft or bore positioning

2.Flanged designs for axial locating and installation

3.Internal threaded structures for fastening or connection

4.Side holes for locking screws or positioning elements

5.Knurled external surfaces for improved manual grip

6.Split collar structures for clamping applications

7.Stepped inner and outer diameters for customized assemblies

8.Chamfers and edge details according to engineering drawings

Dimensions, materials, tolerances and surface requirements are determined from the customer’s drawing rather than using a fixed standard specification.

2. Manufacturing Process

Production of CNC Machined Bushings begins with a review of the 2D drawing, 3D model or physical sample to confirm material, dimensional relationships, bore requirements, thread specifications and functional surfaces.

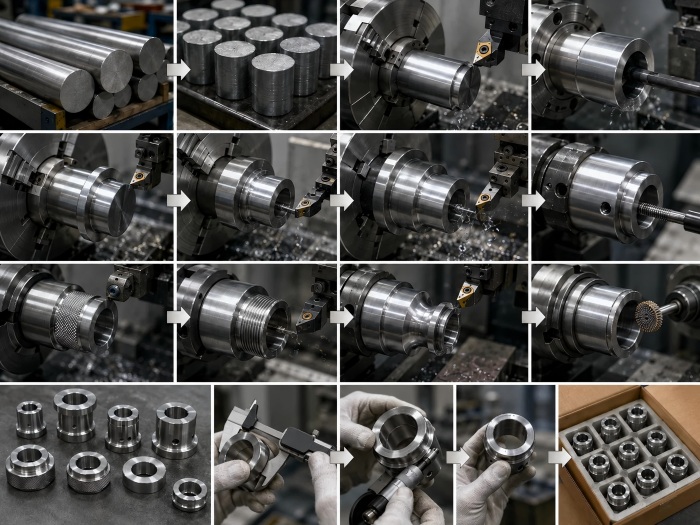

A typical production route may include:

1.Raw-material preparation and blank cutting

2.CNC turning of the outer diameter and end faces

3.Boring or reaming of the internal diameter

4.Machining of flanges, steps or locating shoulders

5.Drilling and tapping of side locking holes when required

6.Knurling, threading or special profile machining

7.Deburring and edge finishing

8.Dimensional and visual inspection before packing

For parts requiring several related diameters or mounting positions, machining references are planned in advance to help maintain dimensional consistency during production.

3. Product Advantages

1.Flexible structural customization

Straight, flanged, threaded, knurled, stepped and split configurations can be manufactured according to the assembly design.

2.Assembly-focused dimensional control

Inner diameters, outer diameters, shoulders and mating surfaces can be processed according to the specified fit and tolerance requirements.

3.Multiple functional features in one component

Threading, locking holes, flanges and locating surfaces can be integrated into the same machined part.

4.Material selection based on application

Suitable machinable metals can be evaluated according to strength, wear conditions, corrosion environment and customer specifications.

5.Support for prototypes and repeat orders

The manufacturing route can accommodate initial verification, small production runs and subsequent batch purchasing.

6.Drawing-based inspection

Critical dimensions and functional areas are checked according to approved technical requirements instead of relying only on general dimensional standards.

4. FAQ

Q1: Can these bushings be manufactured according to our existing drawings?

Yes. Production can be based on 2D drawings, 3D models or physical samples.

Q2: Can the inner diameter, flange and threaded structure be customized?

Yes. Bore size, outer diameter, flange geometry, threads, locking holes and other functional features can be produced according to the confirmed design.

Q3: Can you provide different surface finishes?

Yes. The appropriate finishing method can be selected according to the specified material and working environment.

Q4: What information should be provided for quotation?

Please provide the drawing or 3D file, material, quantity, tolerance requirements, surface treatment and any critical inspection points.

Q5: Can CNC Machined Bushings be supplied for both prototypes and production orders?

Yes. The project can begin with prototype or small-batch verification and then move into repeat production after the dimensions and assembly requirements are confirmed.

5.Factory Advantages

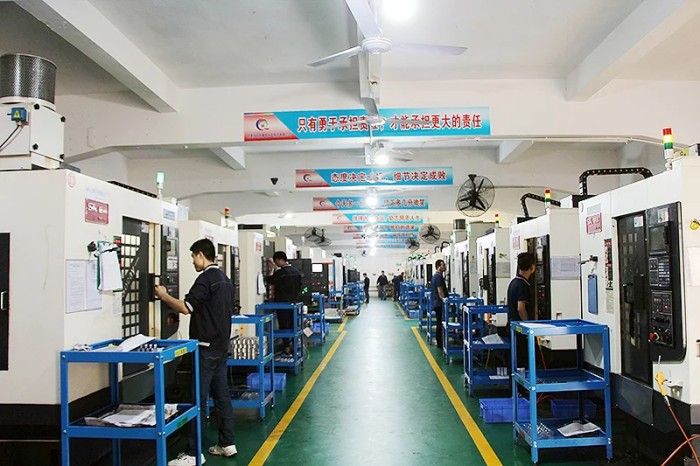

Xiamen Xiangxing Xin Industry and Trade Co., Ltd. provides engineering-oriented manufacturing support for customized precision metal components, helping industrial buyers move efficiently from prototype development to stable repeat production.

1.Engineering-Driven Manufacturing

We work from 2D drawings, 3D models, and physical samples, with machining plans developed around part geometry, tolerance, assembly relationships, and actual working conditions.

2.Multi-Process CNC Capability

CNC turning, milling, turn-mill machining, 3-axis, 4-axis, and 5-axis processes can be selected according to part complexity and production requirements.

3.Prototype to Batch Production

Projects can begin with prototypes or small-batch validation before moving into repeat production, helping customers verify dimensions, assembly, and manufacturability at an early stage.

4.Complex Part Process Planning

For components involving cavities, multiple holes, threads, precision bores, stepped structures, and critical mating surfaces, machining datums and process sequences are planned before production to improve consistency.

5.Drawing-Based Quality Control

Critical dimensions, hole positions, threads, mating surfaces, and appearance can be inspected according to approved drawings and confirmed technical requirements.

6.Flexible Material & Surface Treatment Options

Different machinable metals and suitable finishing processes can be evaluated according to strength, weight, corrosion resistance, appearance, and application conditions.

7.OEM & ODM Customization

Product structure, dimensions, materials, surface finish, and functional details can be customized for project-based purchasing and long-term industrial sourcing.

8.Direct Engineering Communication

Technical requirements can be communicated directly with engineering and production teams, reducing information loss and improving efficiency during drawing review, sampling, design changes, and production follow-up.
