Precision CNC Machined Slotted Fixture Plate

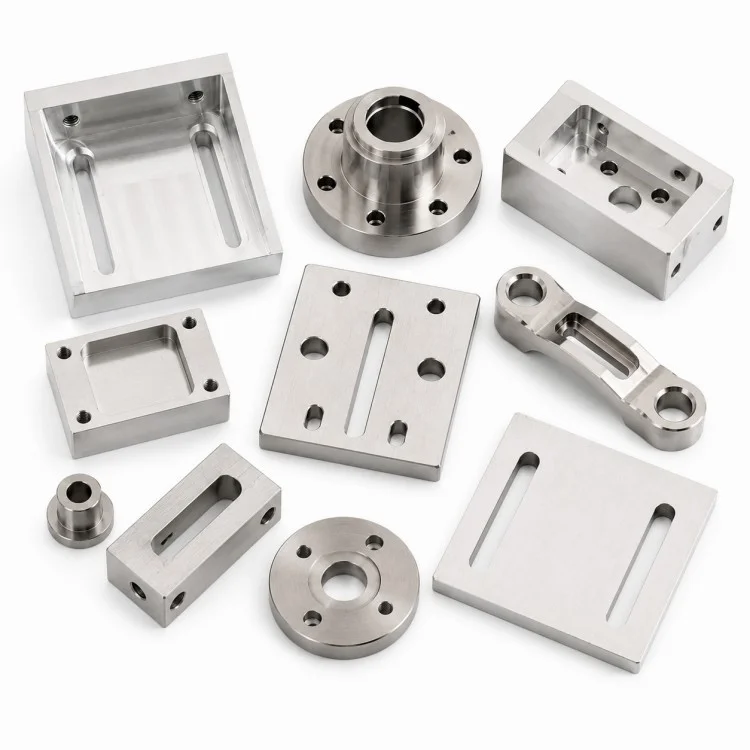

As a Precision CNC Machined Slotted Fixture Plate manufacturer, Xiangxing Xin supports tooling and fixture projects that require adjustable positioning, stable mounting surfaces and non-standard hole layouts. Elongated slots provide installation travel, while flat machined surfaces can be used as mounting, positioning, supporting or clamping references.

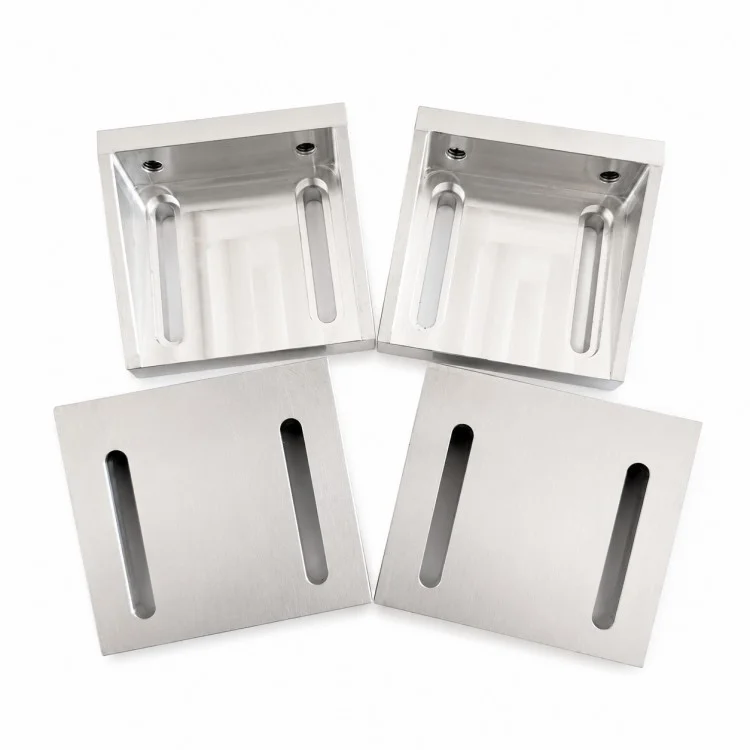

Depending on the fixture design, the plate may include recessed pockets, threaded holes, counterbores, locating holes and additional mounting features. Slot length, slot width, spacing, plate thickness and reference surfaces can all be controlled according to the approved technical drawing, allowing the component to fit specific machinery and tooling layouts.

CNC milling is suitable for producing flat surfaces, elongated slots, external profiles and recessed areas. Drilling and tapping can then be used for mounting holes, locating positions and threaded features. Deburring, edge treatment, cleaning and suitable surface finishing can be arranged according to the technical requirements of the project.

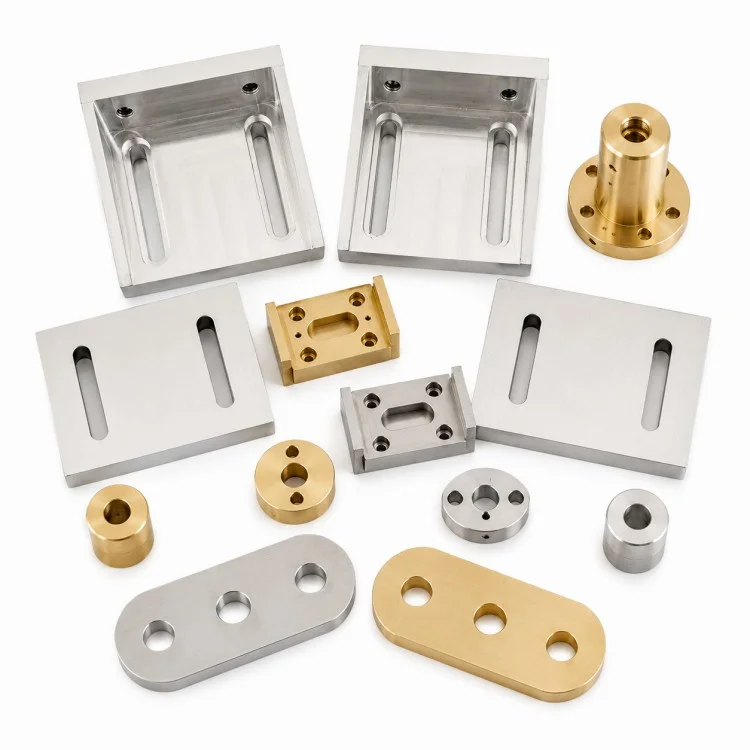

Xiamen Xiangxing Xin Industry and Trade Co., Ltd. can evaluate aluminum alloy, stainless steel, carbon steel, brass and other machinable materials according to rigidity, component weight, corrosion resistance, wear conditions and application requirements. Critical dimensions such as slot geometry, hole position, flatness and mating surfaces can be included in the inspection plan.

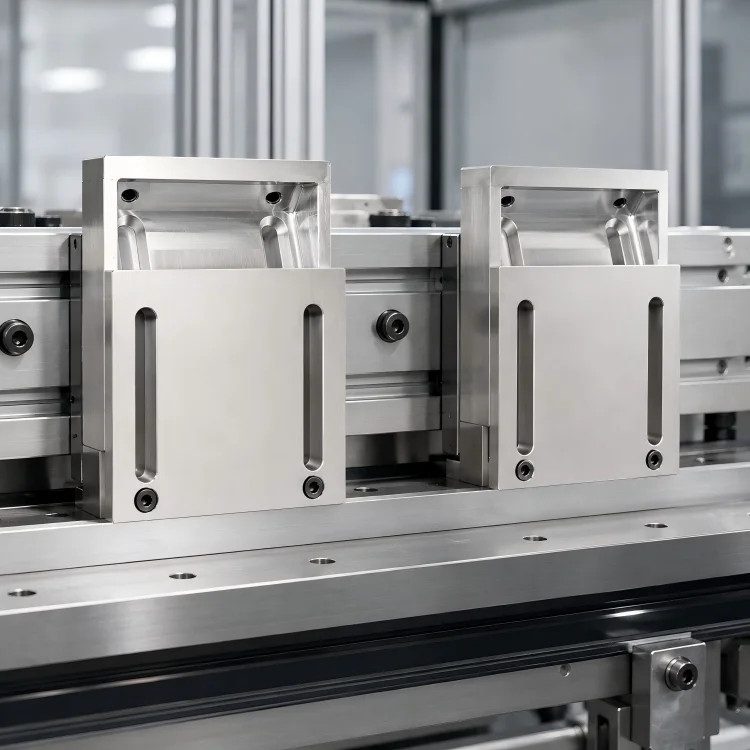

For fixtures that require both positional adjustment and stable structural support, this machined tooling plate can be produced around the customer’s actual installation space, clamping method and mating components rather than being limited to standard plate dimensions.

Specifications

Product Features

Adjustable Slot Layout

Elongated slots provide controlled movement during installation, allowing the final position to be adjusted before fastening.

Integrated Fixture Structure

Slots, pockets, locating holes, threaded holes and reference surfaces can be machined into one plate according to the assembly design.

Stable Reference Surfaces

Flat machined areas can serve as locating, supporting or clamping references for tooling and equipment assemblies.

Drawing-Based Geometry

Slot position, spacing, plate thickness, hole layout and recessed features can be produced around the actual fixture rather than standard dimensions.

Flexible Material Selection

Material can be selected according to rigidity, component weight, wear resistance, corrosion resistance and working conditions.

Manufacturing Process

Direct Factory Advantages

For non-standard fixture projects, Xiangxing Xin provides direct factory production of Precision CNC Machined Slotted Fixture Plate through Xiamen Xiangxing Xin Industry and Trade Co., Ltd., supporting technical coordination from drawing review to repeat manufacturing.

1. Direct Factory Communication

Customers can directly confirm slot dimensions, plate thickness, hole positions, reference surfaces and tolerance requirements with the machining side.

2. Drawing and Sample Based Production

2D drawings, 3D models and physical samples can be reviewed for tooling and fixture component development.

3. Multi-Feature Machining Coordination

Slots, recessed pockets, mounting holes, threaded positions and reference surfaces can be coordinated within one machining project.

4. Fixture-Oriented Technical Review

Before machining, slot travel, mounting clearance, reference surfaces and mating positions can be reviewed according to the actual fixture application.

5. Flexible Material Support

Materials can be evaluated according to rigidity, weight, wear resistance, corrosion resistance and operating conditions.

6. Prototype-to-Batch Production

Xiangxing Xin supports prototype evaluation and repeat manufacturing after the important dimensions and technical requirements are confirmed.
