Precision CNC Machined Flat Linkage Arm

For OEM sourcing, Xiangxing Xin supplies the Precision CNC Machined Flat Linkage Arm from 2D drawings, 3D files or approved samples. Instead of treating the mounting hole, flat body and shaped end as unrelated features, the machining route is planned around the component’s actual connection and motion function.

For thin or medium-thickness parts, blank preparation can be selected according to dimensional tolerance, edge quality and production volume. Precision CNC finishing is then used for critical mounting holes, end geometry and specified reference surfaces. This allows the part to remain economical without sacrificing the dimensions that directly affect assembly.

When the linkage operates around a pin, shaft or fastener, the mounting-hole diameter and position can be inspected as functional characteristics. Edge transition and corner finishing can also be controlled to reduce burrs, prevent interference and improve handling during assembly.

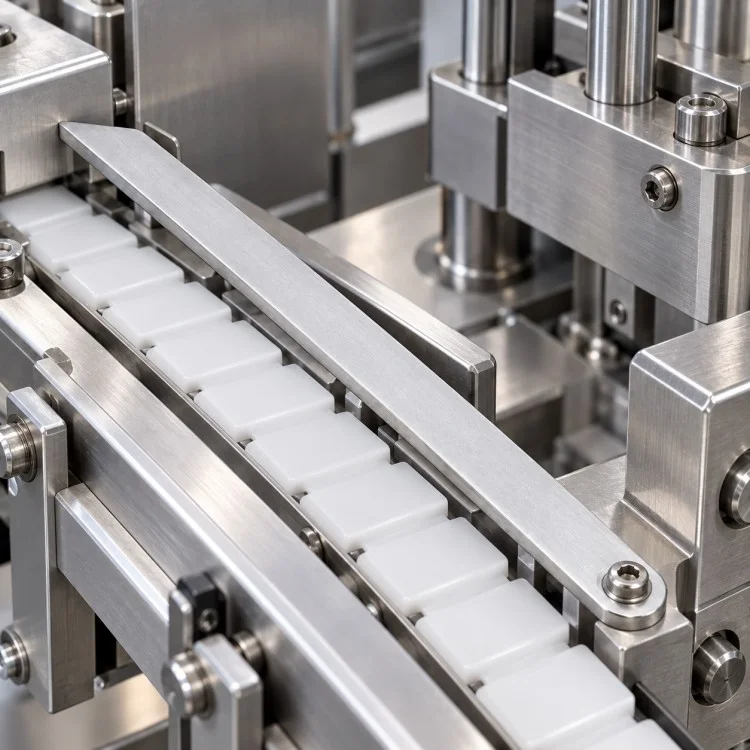

This component type is commonly suited to automation mechanisms, fixtures, industrial equipment, adjustment systems, mechanical linkages, control assemblies and other applications requiring a slim rigid connecting member.

Specifications

Functional Design & Application

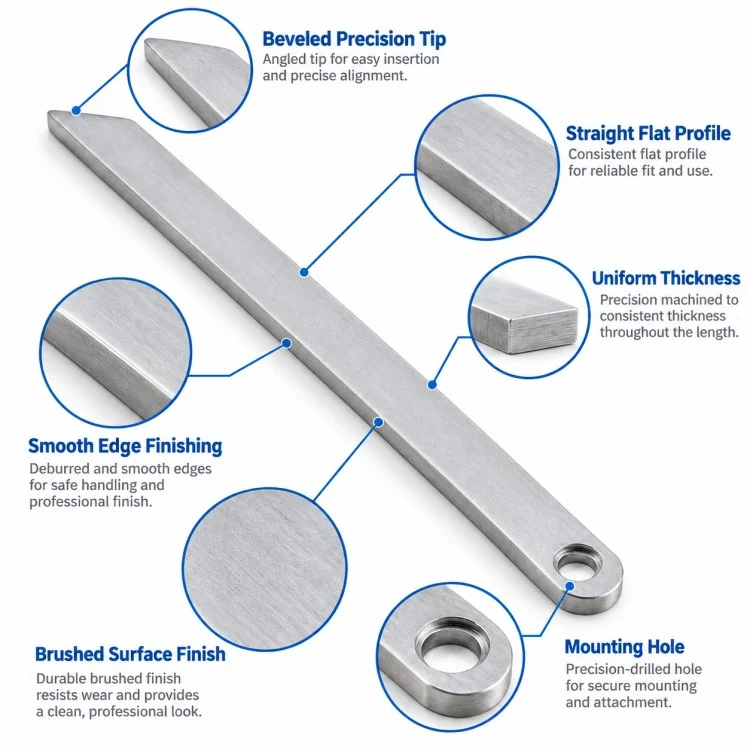

The slim one-piece geometry is useful where a rigid connection is required without occupying excessive installation space.

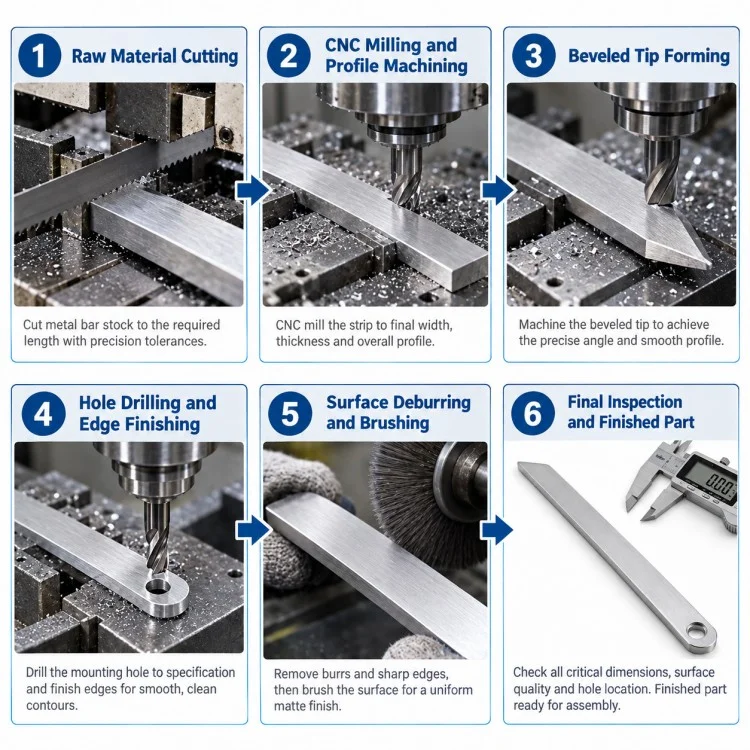

Manufacturing Process

Production of a flat linkage component is not limited to a single machining method. The route can be selected according to thickness, accuracy, quantity and edge-quality requirements.

FAQ

Q1: What tolerances can you achieve on linkage components?

Standard CNC dimensions are commonly controlled around ±0.01 mm. Tighter requirements for mounting holes, hole position or mating features can be evaluated individually. Under suitable part geometry and machining conditions, specific features may reach equipment capability around ±0.001 mm.

Q2: What materials can you machine?

We can evaluate aluminum alloys, stainless steels, carbon and alloy steels, brass, copper and other confirmed machinable materials according to strength, corrosion resistance and application needs.

Q3: Can the length, hole size and end shape be customized?

Yes. Overall length, width, thickness, mounting-hole diameter, rounded end, angled tip and other geometry can all be produced according to customer drawings.

Q4: Can I order only one prototype?

Yes. Xiangxing Xin supports drawing-based CNC prototypes starting from one piece, allowing customers to check fit and function before batch production.

Q5: Are first samples free?

For first cooperation, sample cost is evaluated according to raw material and machining difficulty. For suitable projects, agreed sample charges may be credited or refunded after a subsequent production order.

Q6: What files should I send for quotation?

PDF, DWG and DXF drawings are recommended for dimensions and tolerances. STEP, IGES and SolidWorks files are also accepted. Please include material, quantity, surface finish and critical tolerance requirements whenever available.

Direct Factory Advantages

Xiamen Xiangxing Xin Industry and Trade Co., Ltd. provides source-factory production for drawing-based precision metal components, combining engineering review, prototype machining, inspection and repeat manufacturing in one workflow.

Flexible Process Selection

Not every flat linkage part needs the same route. According to thickness, tolerance and quantity, blanks can be produced using CNC machining, laser cutting or waterjet cutting before critical features are finish-machined.

Attention to Functional Hole Position

For linkage parts, an accurate hole diameter alone is not enough. Hole position relative to the opposite end and external profile can directly influence mechanism travel, so these relationships can be treated as functional inspection points.

Broad Material Capability

Available machining materials include aluminum alloys, stainless steel, carbon steel, alloy steel, brass, copper and other suitable metals, making it easier to match strength, corrosion resistance, weight and cost targets.

Prototype-Friendly Production

One-piece prototype production is supported for drawing-based parts, which is useful for design verification, mechanical testing and fit confirmation before larger orders.

Equipment and Machining Range

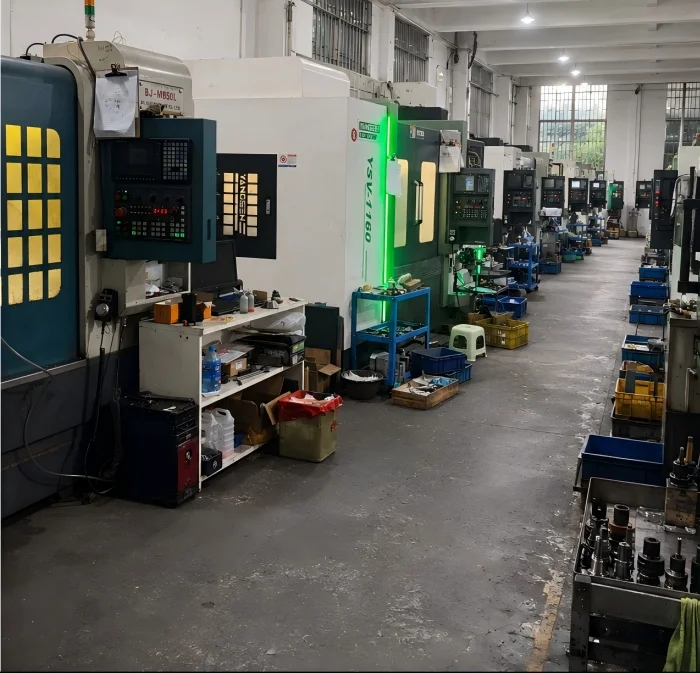

Xiamen Xiangxing Xin Industry and Trade Co., Ltd. has CNC turning, turning-milling, 3-axis, 4-axis and 5-axis machining capability. For larger rotational projects, two CNC lathes can handle approximately 1500 mm turning diameter subject to drawing review.

Quality and Repeatability

The Precision CNC Machined Flat Linkage Arm can be produced with controlled machining datums and repeat inspection points after the prototype is approved, helping maintain dimensional consistency across subsequent batches.

Xiamen Xiangxing Xin Industry and Trade Co., Ltd. operates under ISO 9001 and IATF 16949 quality management systems. Material certificates, dimensional inspection reports and other agreed quality documents can be prepared according to project requirements.
