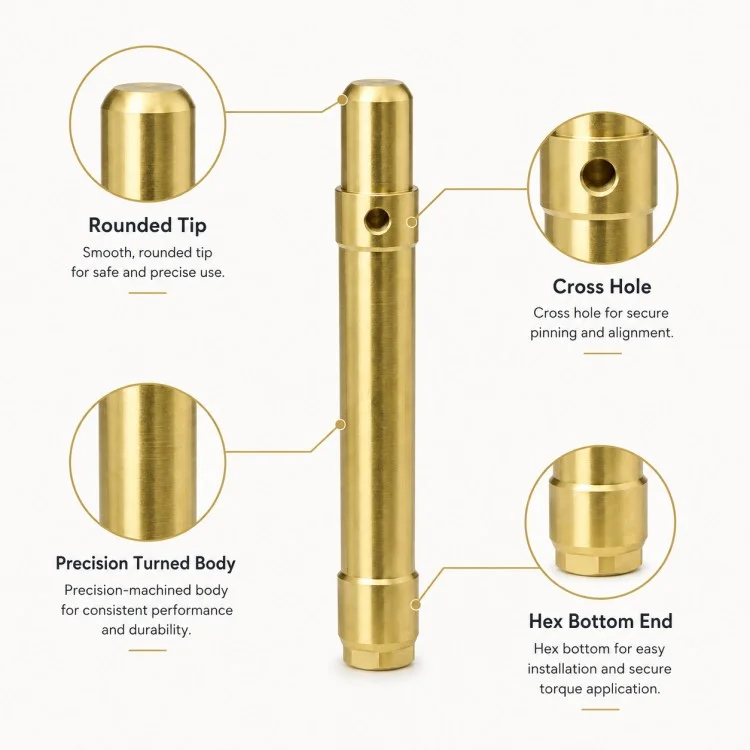

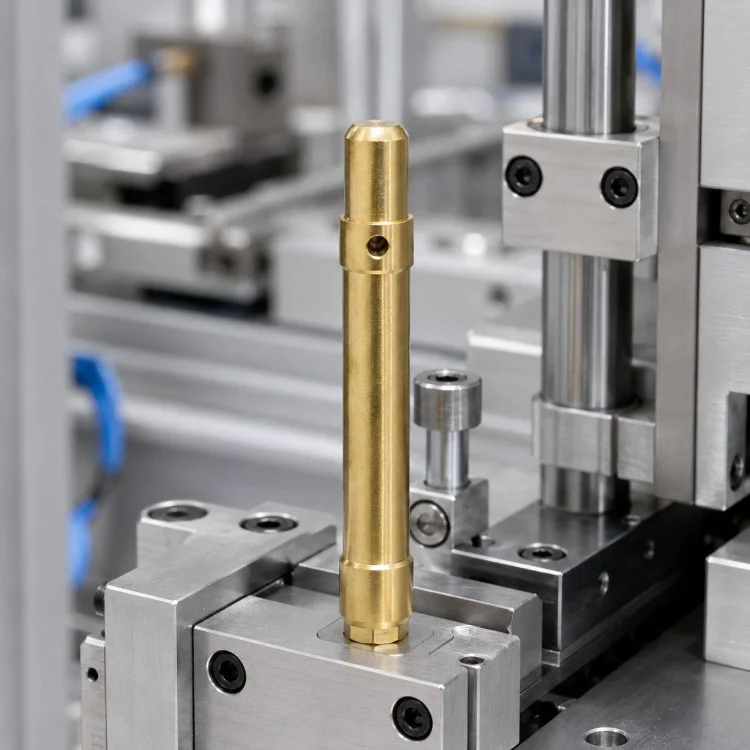

Xiangxing Xin manufactures Precision CNC Machined Cross-Drilled Stepped Shaft for OEM buyers as a direct manufacturer, focusing on dimensional relationships that affect assembly rather than treating every feature independently. The long center section provides the primary cylindrical reference, while stepped shoulders and end diameters can be used for locating, support or connection according to the customer’s design.
A transverse hole is positioned near one stepped section. Depending on the equipment design, such a feature may be used for a pin, locking element, fastening point or another mechanical interface; its actual function should follow the customer’s drawing rather than be assumed during production.
For long shaft components, process planning must also consider the relationship between overall length, journal diameters, shoulder positions and hole location. Appropriate turning sequences, support methods and secondary drilling operations are selected according to the geometry so that important mating areas remain correctly related to the main rotational datum.

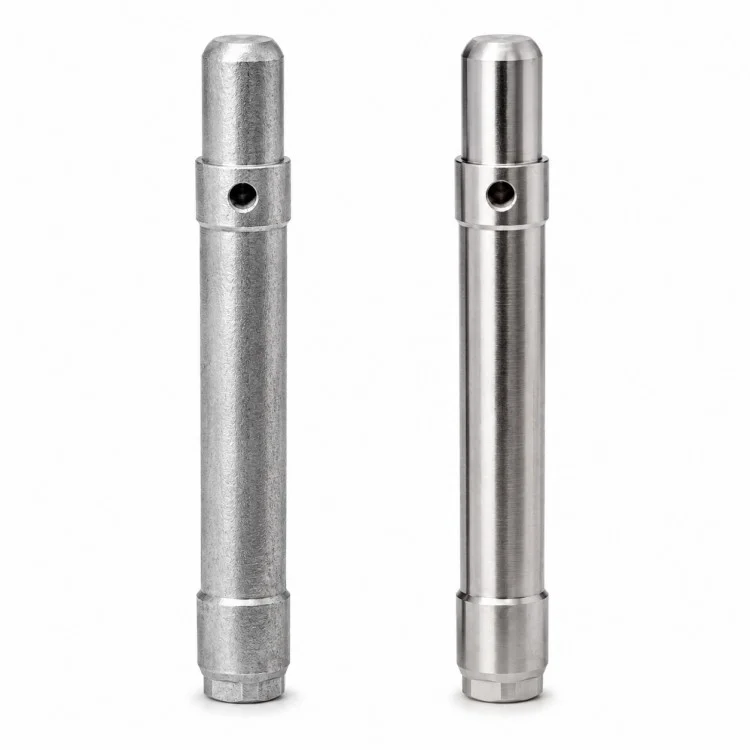

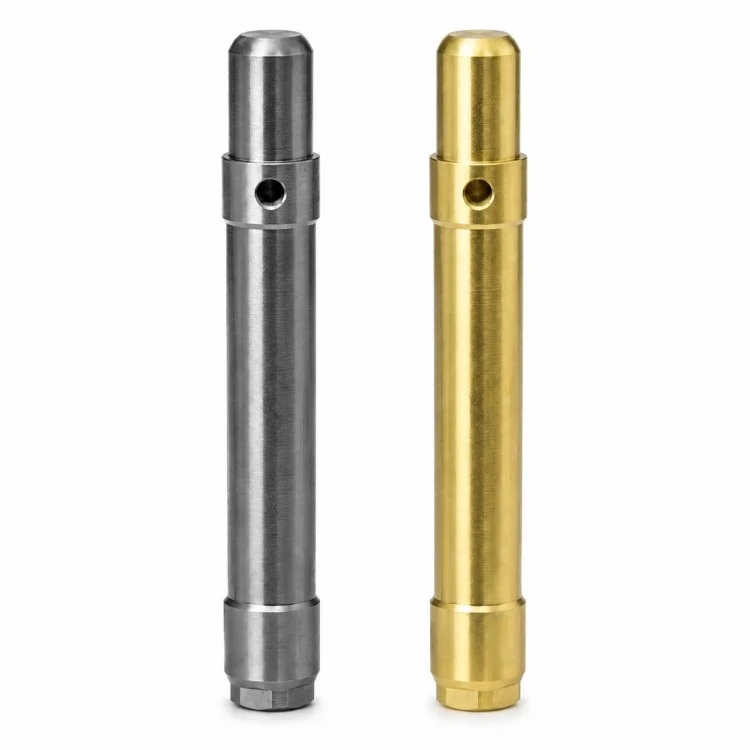

Material selection can be matched to strength, wear, corrosion and weight requirements. Stainless steel, carbon steel, alloy steel, aluminum alloy, brass or other machinable metals may be considered when technically suitable. Heat treatment, grinding, plating or other secondary processes are applied only when required by the technical specification.
Xiamen Xiangxing Xin Industry and Trade Co., Ltd. can include shaft diameter, shoulder spacing, cross-hole position, end features and critical mating dimensions in the inspection plan. This approach is suitable for non-standard equipment projects where reliable mechanical fit matters more than simply matching a general catalogue shaft.
Different shaft diameters and shoulders can be integrated into one component, allowing several locating and mating areas to be coordinated on the same rotational body.
The transverse hole can be positioned according to its relationship with the nearby shoulder and shaft datum, which is important when the hole participates in pinning, locking or assembly.
Long cylindrical components require attention to support, machining sequence and dimensional relationships rather than simply turning each diameter independently.
Chamfers, reduced diameters, flats or other end structures can be incorporated according to the mating equipment and installation method.
Dimensions are defined around the actual assembly interface, making the component suitable for non-standard machinery where catalogue shafts do not match the required geometry.
Producing a Precision CNC Machined Cross-Drilled Stepped Shaft requires the turning datum and transverse feature to be planned as one machining system rather than unrelated operations.

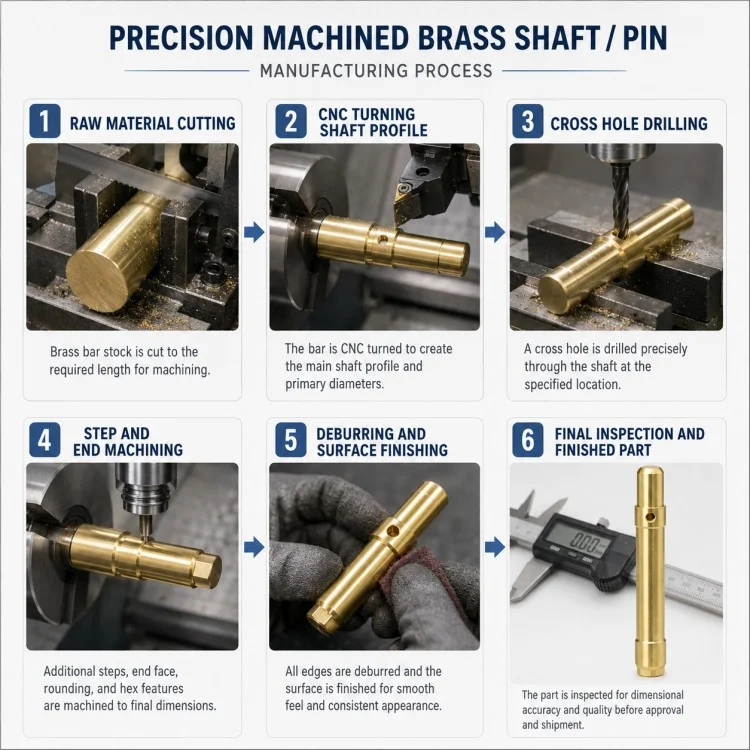

| Process Stage | Main Control Point |
| Drawing Review | Identify journals, shoulders, cross hole and critical mating dimensions |
| Raw Material Preparation | Select suitable bar stock and machining allowance |
| Center / Datum Preparation | Establish stable references for long-shaft machining |
| Rough Turning | Form main diameters and stepped geometry |
| Semi-Finish Turning | Refine journals, shoulders and end sections |
| Cross-Hole Machining | Drill or machine the transverse feature at the specified position |
| End Feature Machining | Complete chamfers, reduced sections or other specified geometry |
| Optional Heat Treatment | Applied only when material properties or hardness require it |
| Finish Turning / Grinding | Finish critical journals when specified |
| Deburring | Remove burrs around holes, shoulders and edges |
| Final Inspection | Check diameter, spacing, cross-hole position and mating dimensions |
| Cleaning & Protection | Prepare finished components for shipment |
| Comparison Item | Drawing-Based Machined Shaft | Standard Shaft / Pin |
| Shaft Diameters | Multiple diameters can follow actual assembly | Usually limited to standard geometry |
| Shoulder Position | Defined according to equipment layout | Fixed by catalogue design |
| Cross Hole | Position and diameter can follow drawing | Often unavailable or standardized |
| End Geometry | Can incorporate specific transitions and features | Limited options |
| Mating Surfaces | Produced around actual connected components | Designed for general use |
| Material Route | Selected according to working conditions | Common standard grades |
| Application | Non-standard OEM machinery | General mechanical use |
Yes. Hole diameter, axial position and relationship to the nearby shoulder can follow the approved drawing.
Yes. Multiple journals, shoulders and stepped sections can be machined according to the required mating interfaces.
No. Grinding depends on tolerance, surface finish, fit and functional requirements. It should only be added when technically necessary.
Yes. Chamfers, reduced diameters, flats or other end features can be produced according to the equipment design.
A 2D drawing or 3D model is preferred, together with material, quantity, tolerances, surface requirements and information about critical mating areas.
Yes, subject to engineering review. Material changes can affect machining, strength, wear behavior and downstream finishing.
This depends on the application, but journal diameters, shoulder spacing, cross-hole position and mating areas are commonly important on this type of shaft.
For long non-standard shaft projects, Xiamen Xiangxing Xin Industry and Trade Co., Ltd. uses the Xiangxing Xin manufacturing approach to support Precision CNC Machined Cross-Drilled Stepped Shaft production from process review through repeat orders.
The machining route can be built around the main shaft reference so that journals, shoulders and transverse features are controlled as related functional geometry.
Process sequencing and workholding can be selected according to shaft length and diameter relationships rather than applying the same setup used for short cylindrical parts.
Turning and transverse-hole operations can be planned together to reduce unnecessary datum changes during production.
Critical fit areas, shoulders, hole positions and end structures can be identified before production so inspection effort is focused on dimensions that actually affect assembly.
After a new part has been verified, confirmed process information can be carried into later repeat manufacturing instead of rebuilding the technical route from zero.
Xiangxing Xin can coordinate turning, drilling, optional milling, heat treatment, grinding and surface finishing according to the specific shaft design.
