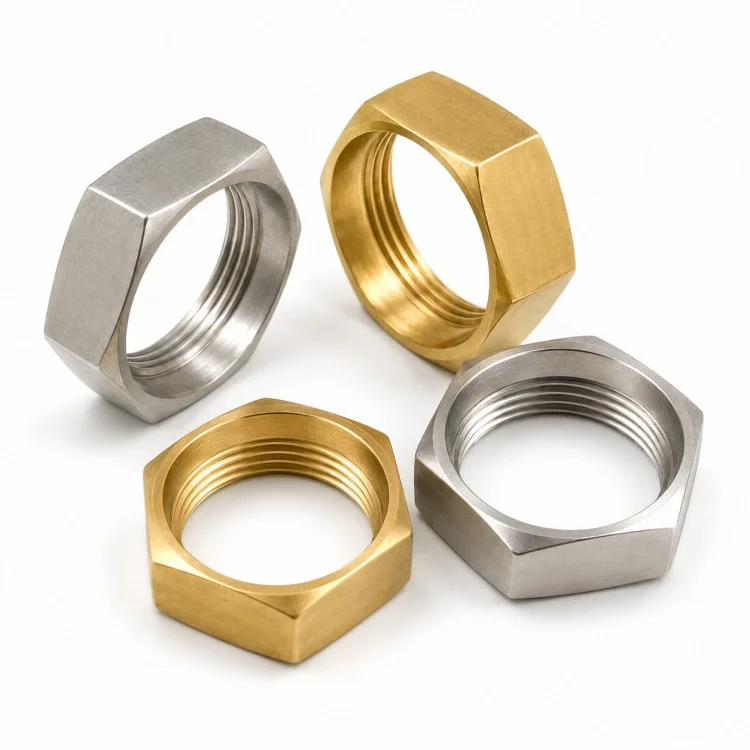

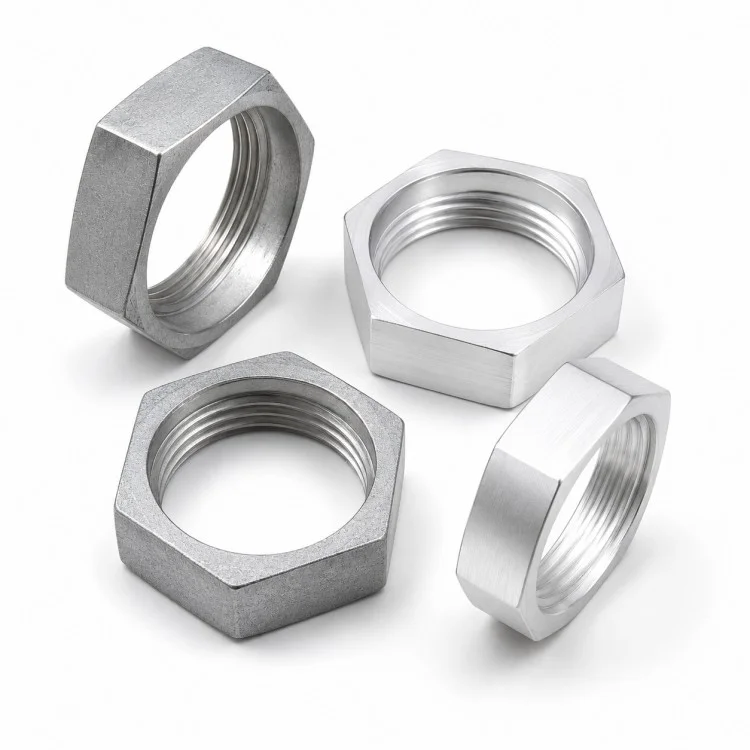

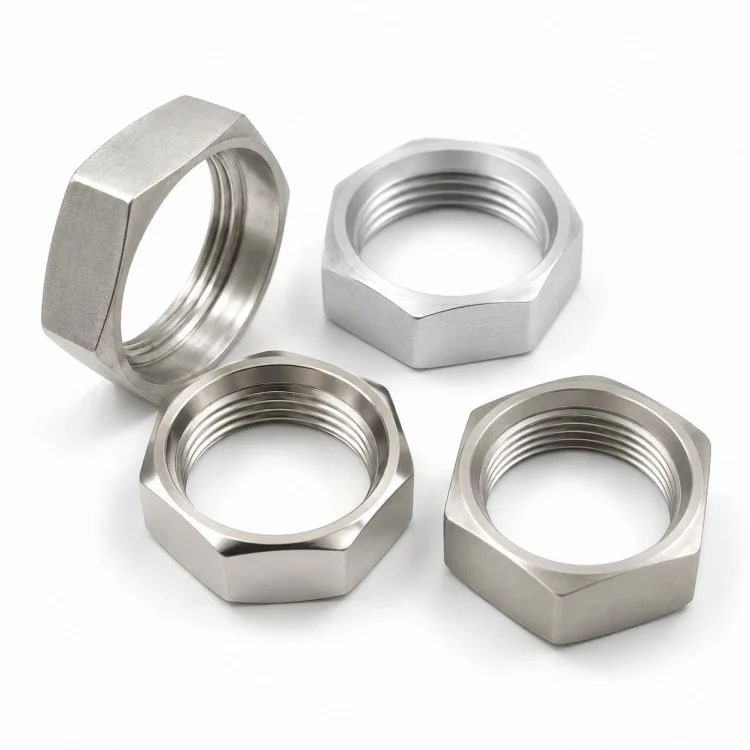

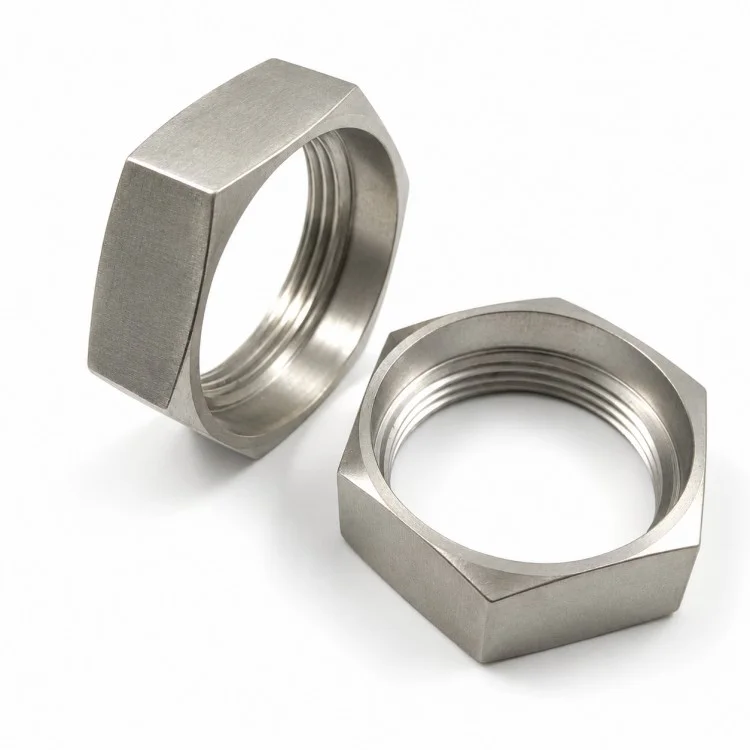

Xiangxing Xin, a Precision CNC Machined Thin Hex Jam Nut manufacturer, focuses on low-profile threaded components for mechanical locking, axial positioning and compact fastening systems. The thin hexagonal structure retains practical wrenching surfaces while reducing the axial installation height required by the assembly.
The internal thread can be produced according to the specified diameter, pitch, thread form and effective engagement length. Across-flats dimensions, nut thickness, chamfers and mating surfaces can also follow the approved technical drawing, allowing the fastener to match threaded shafts, sleeves, fittings or other non-standard connection interfaces.
Depending on the application, CNC turning, internal threading and external hex-profile machining can be coordinated to complete the required geometry. Stainless steel, carbon steel, brass and other machinable metals can be evaluated according to mechanical strength, corrosion resistance, environmental conditions and project requirements.
Xiamen Xiangxing Xin Industry and Trade Co., Ltd. supports drawing review, prototype evaluation and repeat production. Thread fit, thickness, wrenching surfaces and critical mating dimensions can be included in the inspection requirements according to the approved technical documents.

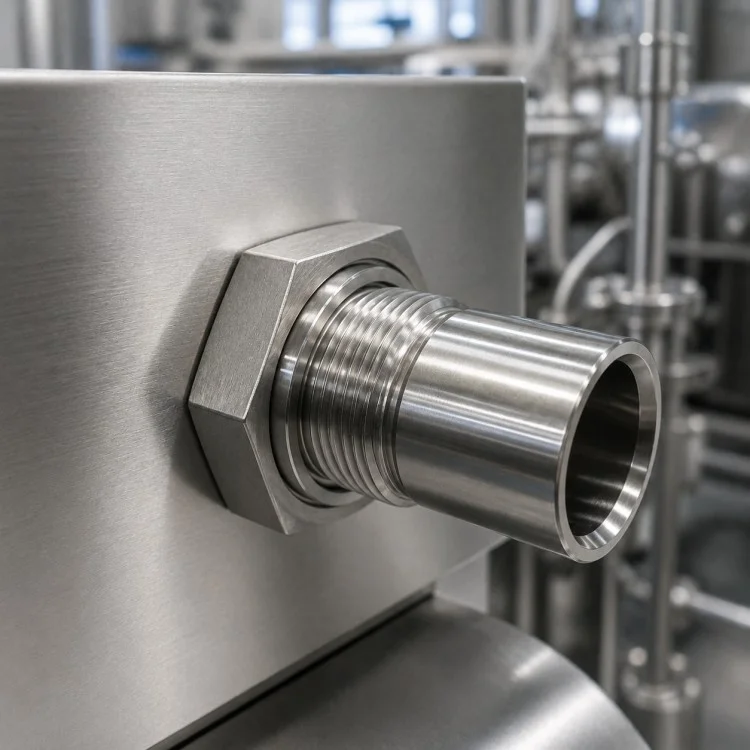

For equipment with limited installation height or secondary locking requirements, this low-profile threaded fastener can be produced around the actual mating structure rather than being restricted to standard catalogue dimensions.
| Parameter | Details |
| Product Name | Precision CNC Machined Thin Hex Jam Nut |
| Brand | Xiangxing Xin |
| Company | Xiamen Xiangxing Xin Industry and Trade Co., Ltd. |
| Product Type | Thin Hex Jam Nut / Low Profile Hex Nut |
| Structure | Thin Hexagonal Body with Internal Thread |
| Manufacturing | CNC Turning, Internal Threading, Hex Profile Machining |
| Thread Diameter | According to Customer Drawing |
| Thread Pitch | According to Customer Drawing |
| Thread Form | According to Required Specification |
| Nut Thickness | According to Customer Drawing |
| Across-Flats Size | According to Customer Drawing |
| Chamfer | According to Assembly Requirements |
| Material | According to Drawing and Application |
| Tolerance | According to Functional Requirements |
| Surface Finish | Machined Finish or Specified Treatment |
| Application | Locking, Axial Positioning, Compact Mechanical Fastening |
| Production Type | Drawing-Based / Sample-Based Production |
| MOQ | To Be Confirmed |
| Lead Time | Confirmed After Drawing Review |
| Inspection | According to Approved Technical Drawing |
| Comparison Item | Xiangxing Xin Machined Solution | Standard Hex Nut |
| Installation Height | Low-profile design for compact spaces | Generally requires more axial space |
| Thread Specification | Produced according to project requirements | Mainly limited to standard thread sizes |
| Nut Thickness | Can follow the actual assembly design | Usually fixed by standard dimensions |
| Across-Flats Size | Can be evaluated around wrench access | Normally fixed |
| Mating Interface | Can match non-standard threaded components | Mainly intended for general fastening |
| Material Selection | Evaluated according to application | Usually based on available standard grades |
| OEM Adaptability | Suitable for special mechanical interfaces | Better suited to standardized assemblies |
Yes. Thread diameter, pitch, thread form and effective engagement length can be machined according to the approved technical requirements.
Yes. Thickness can be evaluated according to installation height, mating conditions and required thread engagement.
Yes. The external hex dimension can be adjusted according to wrench access and the surrounding assembly structure.
Stainless steel, carbon steel, brass and other machinable metals can be evaluated according to the application and technical requirements.
Please provide the drawing or 3D model, thread specification, material, quantity, tolerance, surface-finish requirement and application information.
Yes. Prototype production can be evaluated after the drawing, material and machining requirements are confirmed.
Thread dimensions and mating conditions can be checked according to the approved technical requirements and specified thread standard.
For OEM fastening projects, Xiangxing Xin provides direct factory support for the Precision CNC Machined Thin Hex Jam Nut and other non-standard threaded components through Xiamen Xiangxing Xin Industry and Trade Co., Ltd.
Customers can communicate thread dimensions, nut thickness, across-flats size, mating requirements and tolerances directly with the machining side.
2D drawings, 3D models and physical samples can be reviewed to develop non-standard threaded fasteners around the actual assembly.
Internal threading, end-face machining, chamfering and external hex machining can be coordinated according to one approved technical specification.
Material can be evaluated according to strength, corrosion resistance, operating environment and project requirements instead of being limited to standard catalogue options.
Xiangxing Xin supports prototype evaluation and repeat production after critical dimensions and technical requirements are confirmed.
Thread engagement, installation height, wrench access and locking requirements can be reviewed before production to improve compatibility with the mating structure.
