Precision CNC Machined External Threaded Sleeve

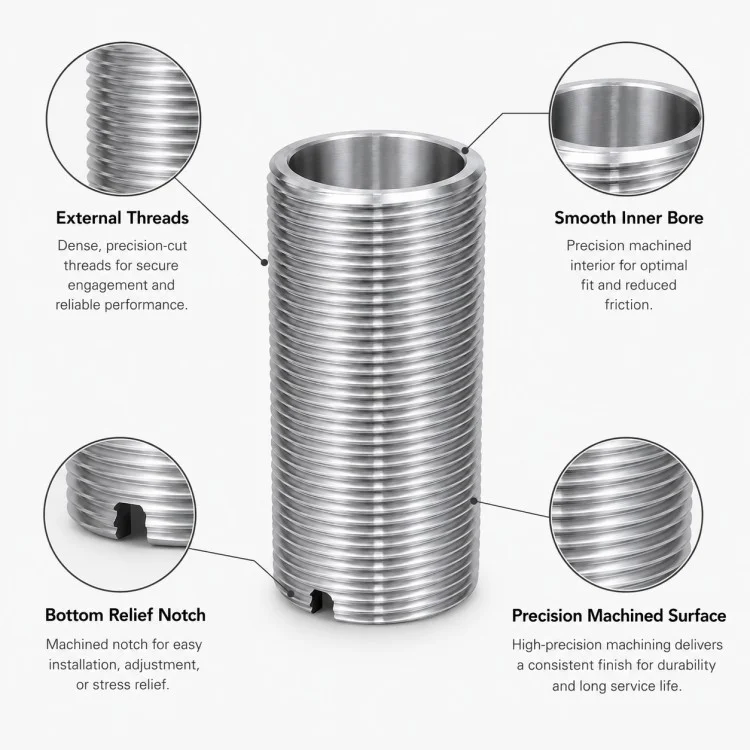

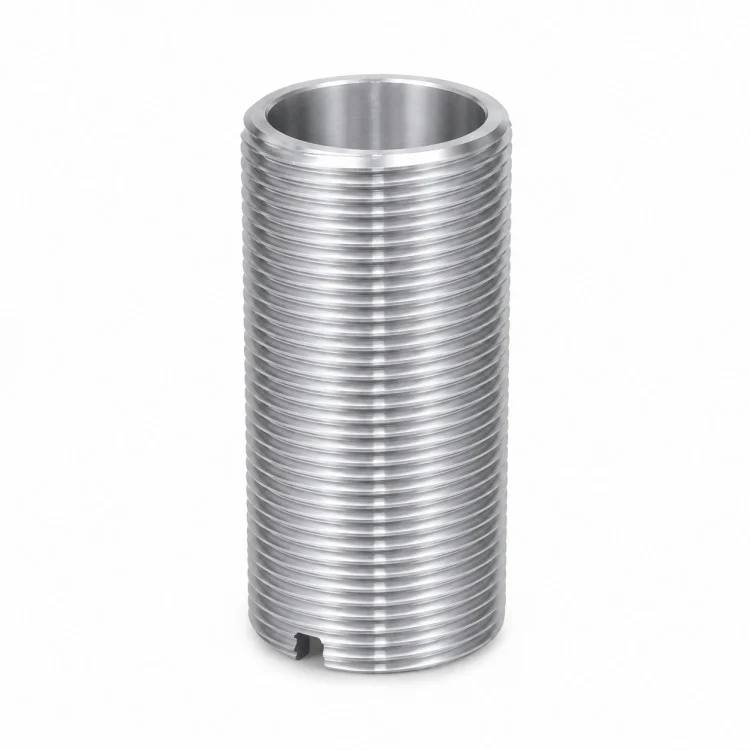

Xiangxing Xin, a Precision CNC Machined External Threaded Sleeve manufacturer, produces male-threaded cylindrical components for mechanical fastening, adjustment, positioning and connection systems. The structure combines a smooth internal bore with a long external threaded section, allowing the part to engage with a mating female thread while maintaining an internal passage or locating bore.

External thread diameter, pitch, thread length and end relief can be produced according to the approved technical drawing. The internal bore, end faces and cylindrical reference surfaces can also be machined according to mating requirements. A locating notch, drive slot or other functional feature can be added when required for installation, orientation or assembly.

CNC turning is suitable for producing the main cylindrical geometry, bore, end faces and external thread. Additional milling may be used for slots, notches or non-rotational features. Depending on the application, stainless steel, carbon steel, aluminum alloy, brass, copper or other machinable metals can be evaluated.

Xiamen Xiangxing Xin Industry and Trade Co., Ltd. supports drawing review, prototype verification and repeat production. Important inspection items can include thread diameter, pitch, bore size, concentricity-related dimensions, overall length and mating surfaces according to the approved technical documents.

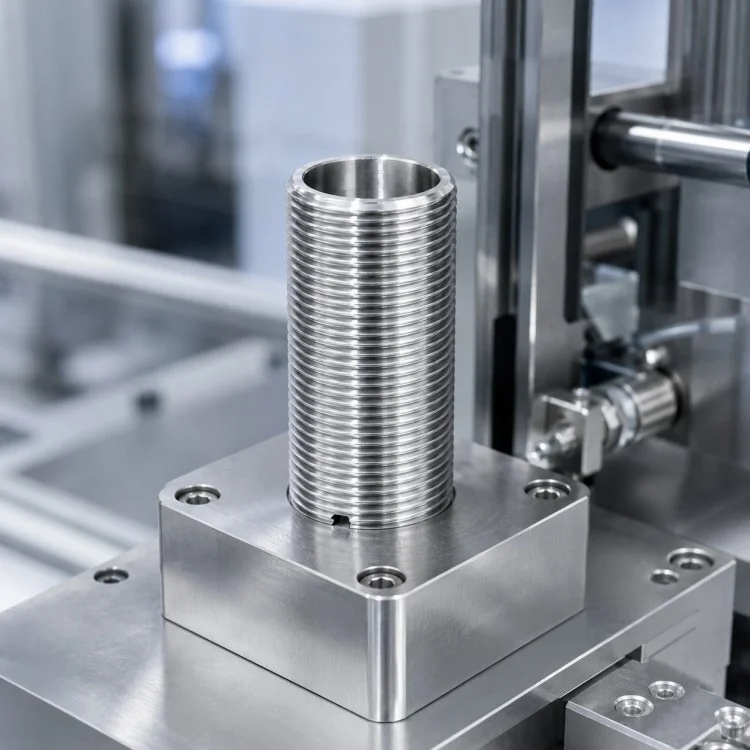

For mechanical systems requiring a long threaded engagement area and compact cylindrical connection structure, this threaded component can be manufactured around the actual equipment interface rather than being limited to standard catalogue dimensions.

Specifications

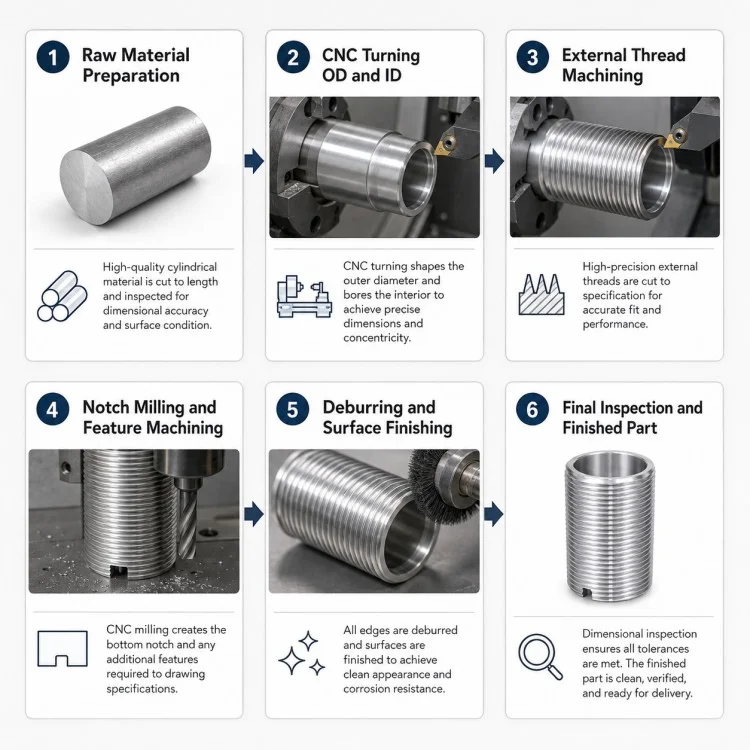

Manufacturing Process

Product Comparison

The Precision CNC Machined External Threaded Sleeve is suitable for projects requiring specific thread engagement, bore dimensions and installation features that standard threaded sleeves may not provide.

FAQ

Q1: Can the external thread diameter and pitch be customized?

Yes. Thread diameter, pitch, thread form and effective length can be manufactured according to the approved drawing.

Q2: Can the internal bore size also be customized?

Yes. Bore diameter, depth and related mating dimensions can be produced according to the actual assembly structure.

Q3: Can the locating notch at the end be changed?

Yes. Notch width, depth, position and shape can be adjusted according to functional requirements.

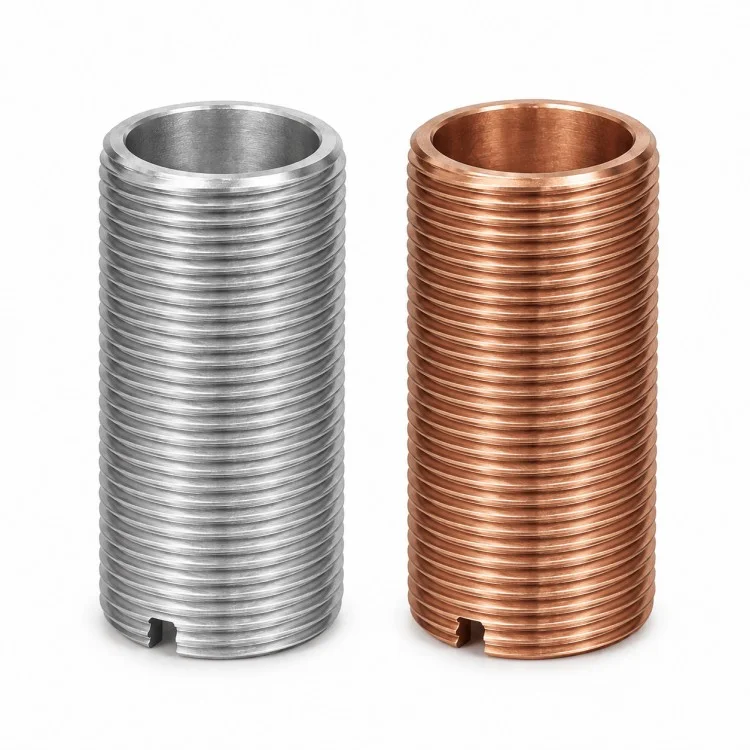

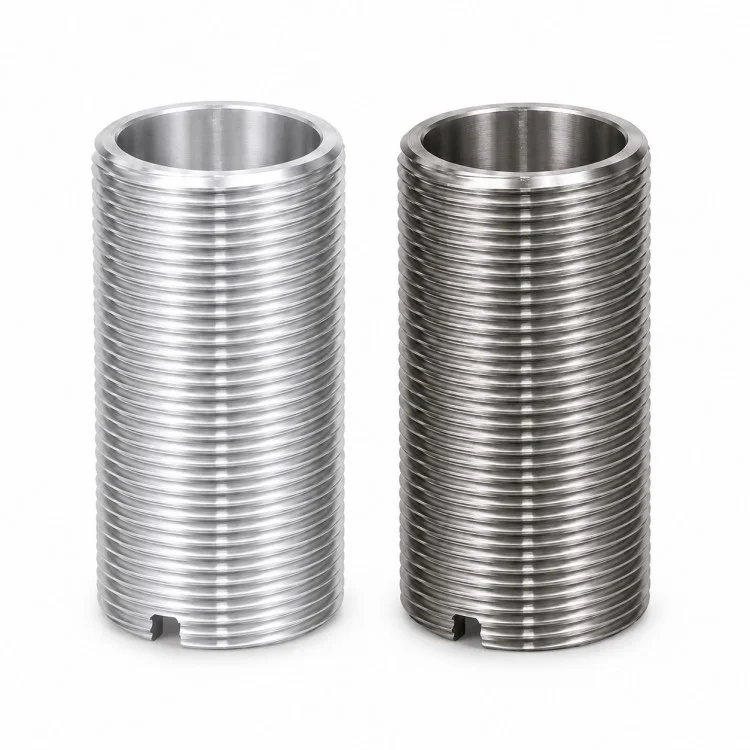

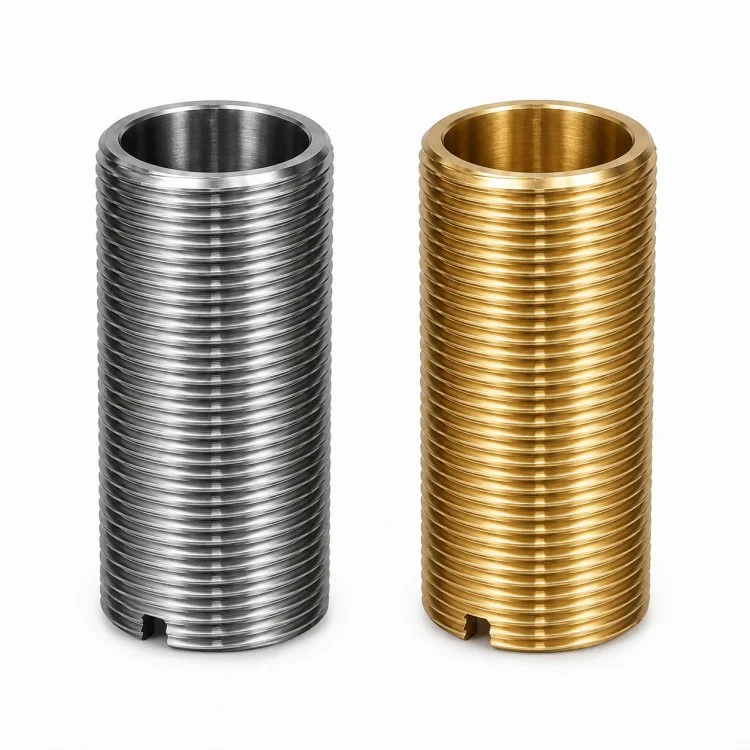

Q4: Which materials can be used?

Stainless steel, carbon steel, aluminum alloy, brass, copper and other machinable metals can be evaluated according to the application.

Q5: What information is required for quotation?

Please provide the drawing or 3D model, material, thread specification, quantity, tolerances, surface requirements and application information.

Q6: Can you make prototypes before mass production?

Yes. Prototype production can be evaluated after the drawing and machining requirements are confirmed.

Q7: How is the external thread inspected?

Thread diameter, pitch and mating condition can be inspected according to the specified thread standard and approved technical requirements.

Direct Factory Advantages

For non-standard threaded component projects, Xiangxing Xin provides direct factory production of Precision CNC Machined External Threaded Sleeve through Xiamen Xiangxing Xin Industry and Trade Co., Ltd., supporting technical coordination from drawing review through repeat manufacturing.

1. Direct Factory Communication

Thread specifications, bore dimensions, overall length, tolerances and mating requirements can be confirmed directly with the machining team.

2. Drawing and Sample Based Production

2D drawings, 3D models and physical samples can be used for development of non-standard cylindrical threaded components.

3. Turning and Secondary Machining Coordination

External threading, boring, end-face machining and additional slot or notch milling can be coordinated within one manufacturing project.

4. Flexible Material Support

Materials can be evaluated according to mechanical strength, corrosion resistance, wear conditions, conductivity and operating environment.

5. Prototype-to-Batch Production

Xiangxing Xin supports initial prototype verification and subsequent repeat manufacturing after critical dimensions and technical requirements are confirmed.

6. Assembly-Oriented Technical Review

Thread engagement, bore fit, installation length and locating features can be reviewed before machining so the component better matches the actual mating structure.
