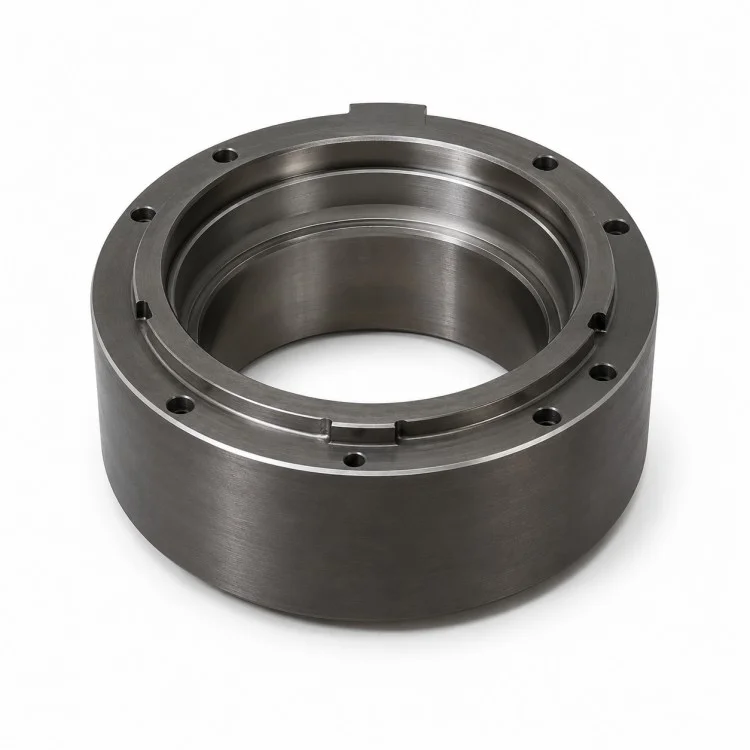

Precision CNC Machined Annular Bearing Housing

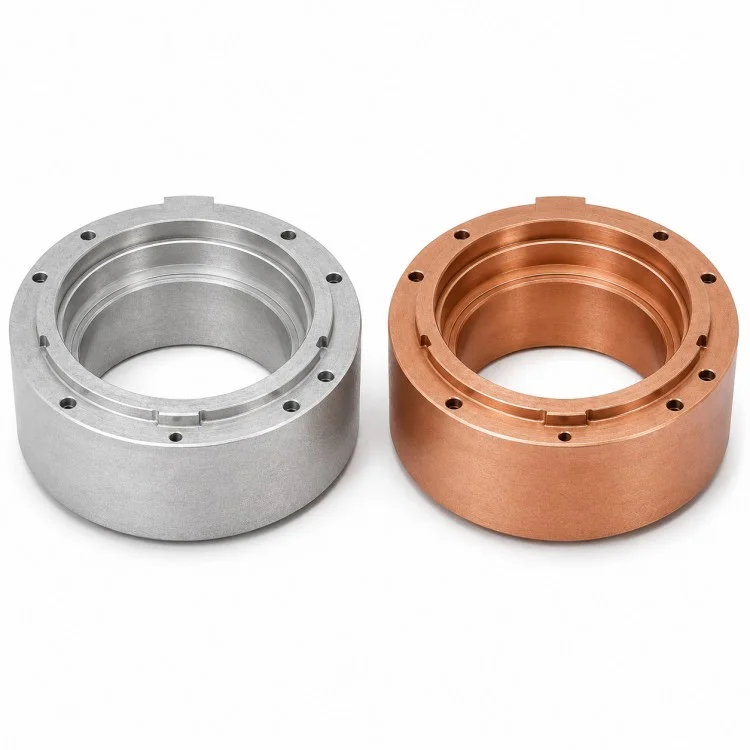

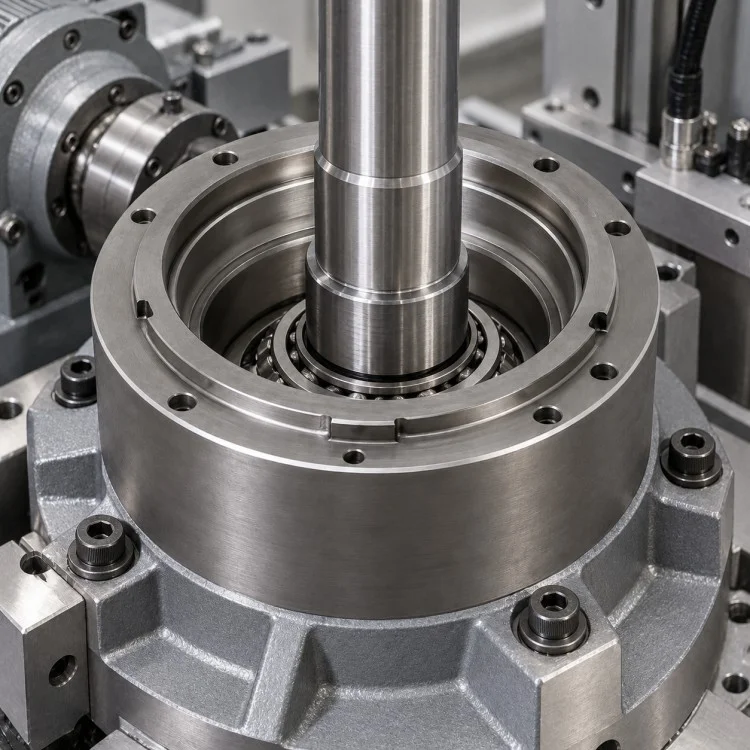

Xiangxing Xin manufactures Precision CNC Machined Annular Bearing Housing as a direct manufacturer for OEM assemblies where multiple concentric surfaces must work together within one circular component. The large central opening is surrounded by stepped internal diameters and shoulders that can provide seating, locating or clearance zones for bearings, sleeves, seals or other cylindrical mating parts.

The outer annular body includes a series of mounting holes arranged around the circumference. Their diameter, quantity and bolt-circle position can follow the customer’s equipment layout. Local notches, raised tabs or interrupted ring features may also be incorporated when the design requires orientation, locking or alignment.

For this type of housing, the relationship between the main bore, inner shoulders, outer diameter and mounting-hole pattern is more important than any single dimension viewed independently. A stable rotational datum is therefore useful when planning turning, boring and secondary hole machining.

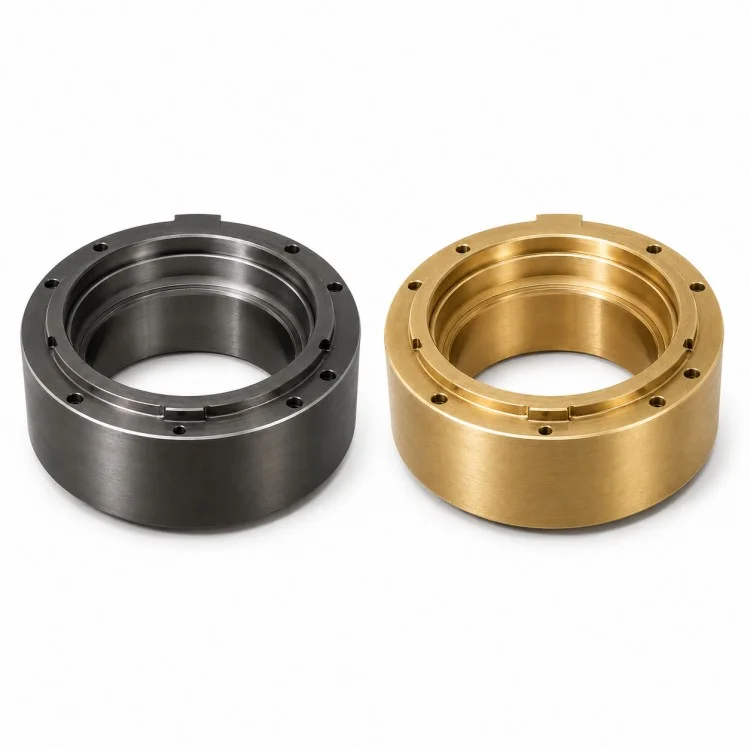

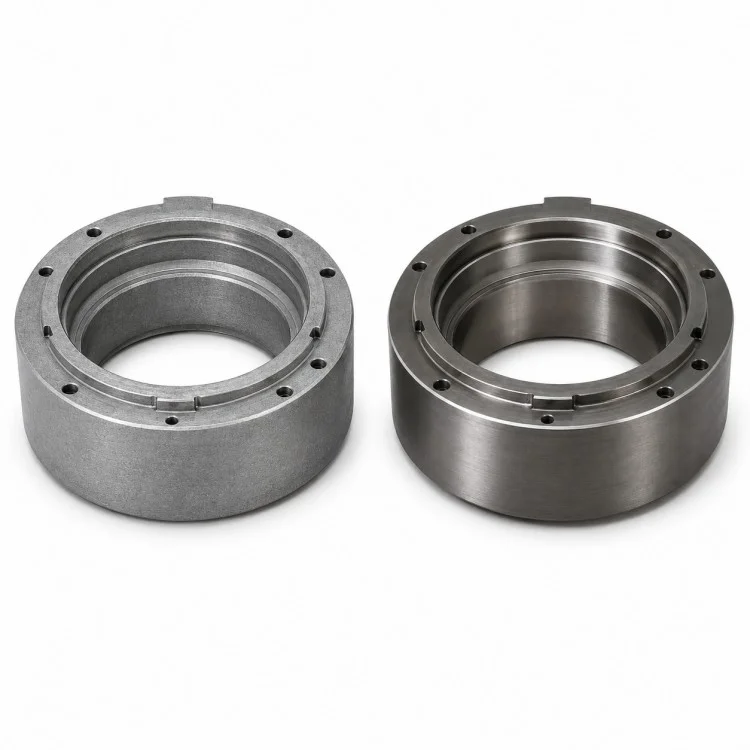

Depending on the application, stainless steel, carbon steel, alloy steel, aluminum alloy, brass or other machinable metals can be considered. If the project includes a bearing seat or seal interface, the final tolerance and surface-finish requirements should be confirmed from the technical drawing before production.

Xiamen Xiangxing Xin Industry and Trade Co., Ltd. can organize inspection around bore diameter, stepped-seat position, concentricity-related dimensions, mounting-hole location and functional mating surfaces. This makes the part suitable for non-standard machinery where reliable alignment and repeatable assembly are more important than using a catalogue housing.

Specifications

Product Advantages

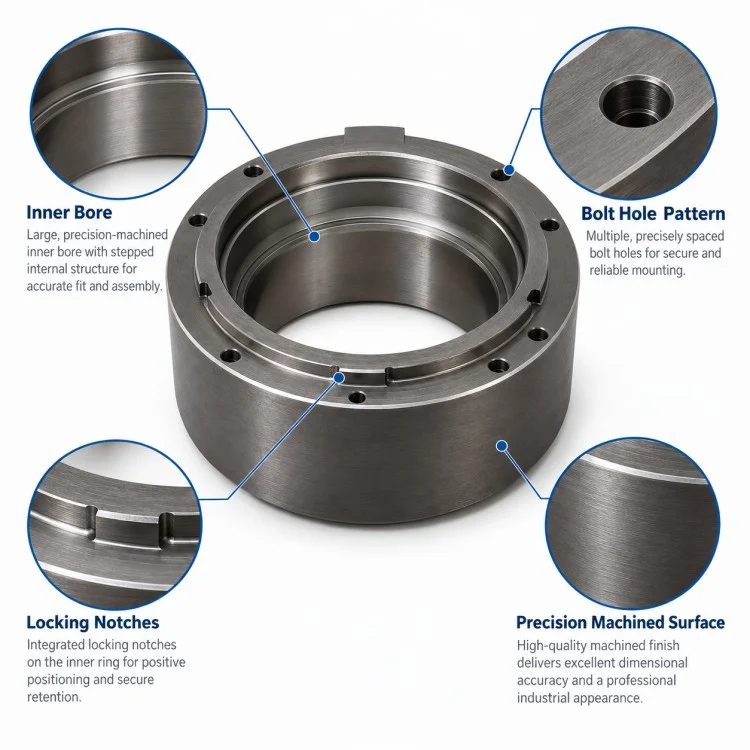

Multi-Step Bore in One Housing

Several internal diameters and shoulders can be integrated into the same annular body, helping one component accommodate different locating, support or clearance zones.

Concentric Functional Surfaces

The main bore, stepped seats and outer cylindrical features can be planned around a common rotational reference when the application requires alignment between mating components.

Circumferential Mounting Layout

Multiple holes can be arranged around the housing according to the equipment bolt circle instead of being limited to a standard mounting pattern.

Compact Circular Structure

The annular design provides a large central opening while retaining sufficient surrounding material for locating surfaces and mounting features.

Flexible Local Features

Slots, tabs, reliefs or small locking details can be added where the actual assembly requires orientation or anti-rotation functions.

Product Comparison

For a Precision CNC Machined Annular Bearing Housing, the main advantage over a general catalogue housing is the ability to define the complete internal stack-up and mounting interface around the customer’s equipment.

FAQ

Q1: Can the internal stepped bore be produced according to our bearing or sleeve dimensions?

Yes. The bore diameters, shoulder positions and seating depths can follow the approved drawing and actual mating components.

Q2: Can the mounting-hole pattern be changed?

Yes. Hole quantity, diameter and bolt-circle position can be produced according to the customer’s equipment layout.

Q3: Can the housing include several bearing or seal locations?

Potentially yes. Multiple stepped areas can be machined when the drawing requires separate locating or seating zones.

Q4: Does the center bore always require a tight tolerance?

No. Different sections may have different functions. Bearing seats, clearance bores and seal areas should each follow their own functional requirements.

Q5: Can local notches or tabs be added?

Yes. These features can be added for orientation, locking or positioning when clearly defined in the technical drawing.

Q6: What information should be provided for quotation?

Please provide the drawing or 3D model, material, quantity, critical bore fits, mounting-hole information, surface requirements and application details.

Q7: Can a prototype be made before repeat production?

Yes. For new annular housings, sample verification can help confirm fit, mounting and assembly requirements before repeat quantities are released.

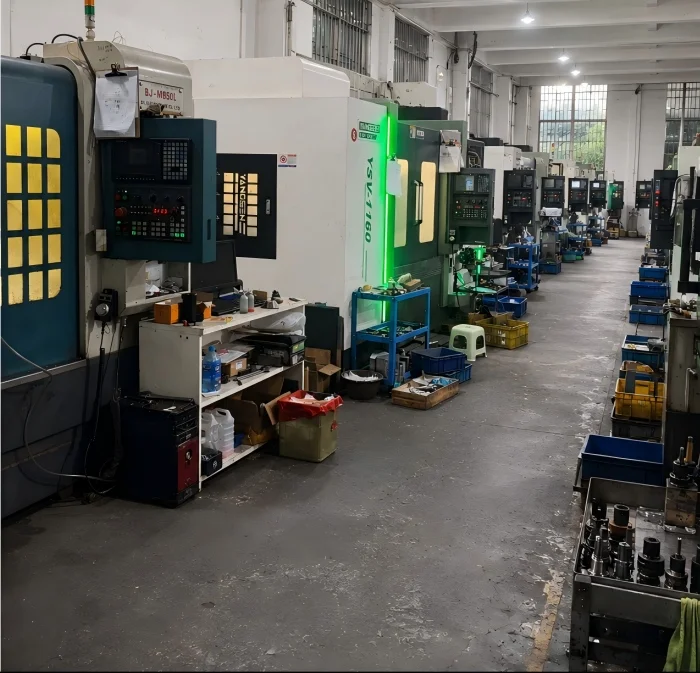

Direct Factory Advantages

For large annular components, Xiamen Xiangxing Xin Industry and Trade Co., Ltd. uses the Xiangxing Xin machining workflow to support Precision CNC Machined Annular Bearing Housing projects from bore-layout review to repeat production.

Internal Stack-Up Review

Instead of checking only one bore diameter, the machining team can review the full sequence of internal steps, shoulders and locating surfaces as one assembly stack.

Turning and Hole-Pattern Coordination

Circular turning and circumferential drilling can be planned together so the mounting pattern remains correctly related to the principal bore.

Suitable for Non-Standard Bearing Interfaces

Customers are not restricted to standard catalogue housings. Bore diameter, seat depth, housing height and mounting-hole distribution can follow the real equipment design.

Functional Fit Focus

Inspection can distinguish between bearing fits, clearance areas and general structural surfaces instead of assigning unnecessary tight tolerances to every feature.

Prototype Verification for New Assemblies

For new machinery projects, samples can be used to verify bearing seating, housing mounting and surrounding clearance before repeat production.

Flexible Manufacturing Route

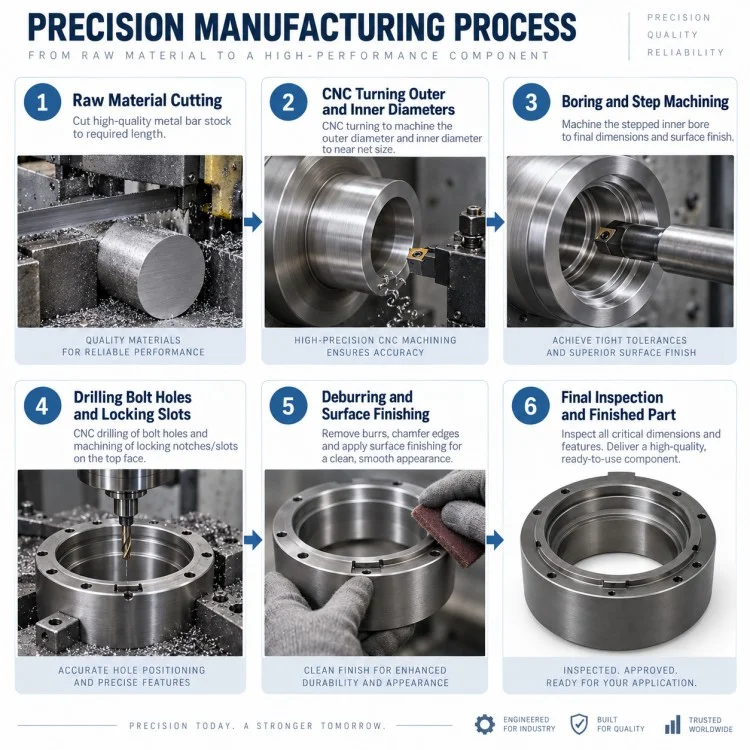

Xiangxing Xin can coordinate turning, boring, drilling, milling, optional heat treatment and surface finishing according to the actual geometry and material.
