CNC Machined Housing

Xiamen Xiangxingxin Industry and Trade Co., Ltd. serves global industrial buyers as a professional CNC Machined Housing Manufacturer, providing drawing-based production for equipment structures that require custom cavities, threaded interfaces, precision bores and reliable mounting positions.

1. Product Comparison

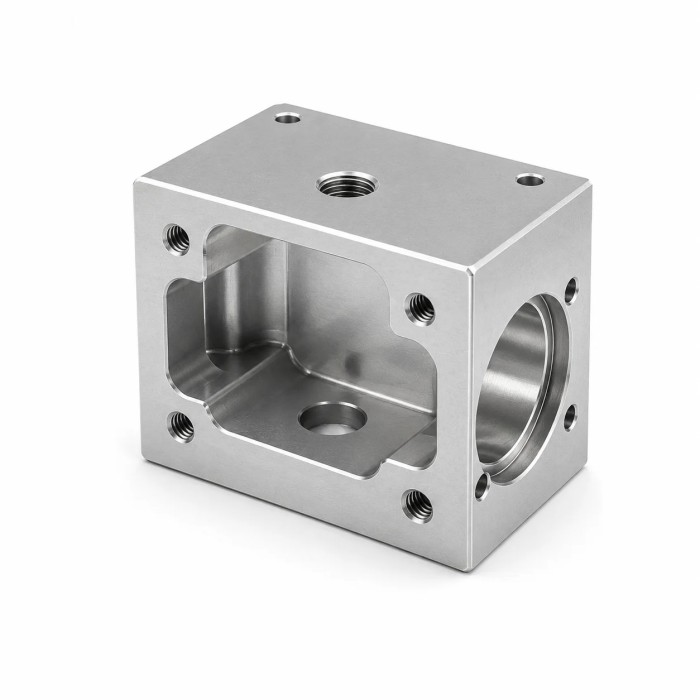

A CNC Machined Housing integrates the internal cavity, threaded holes, positioning bores and mounting surfaces into one precision-machined component. Compared with an enclosure assembled from several separate parts, the integrated structure reduces connection interfaces and simplifies subsequent installation.

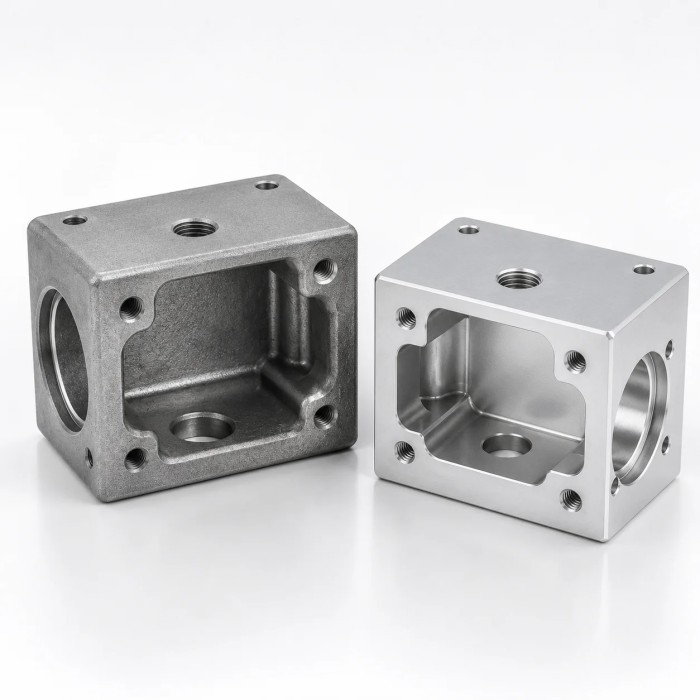

Compared with a general-purpose cast housing, drawing-based CNC production offers greater flexibility for customized hole locations, cavity profiles and functional surfaces. The appropriate manufacturing method should be selected according to the required quantity, structural complexity, material and tolerance specifications.

2. Manufacturing Process

Production of each CNC Machined Housing begins with an engineering review of the customer’s 2D drawing, 3D model or physical sample. The review focuses on material requirements, machining datums, cavity geometry, thread specifications, critical tolerances and surface-finish expectations.

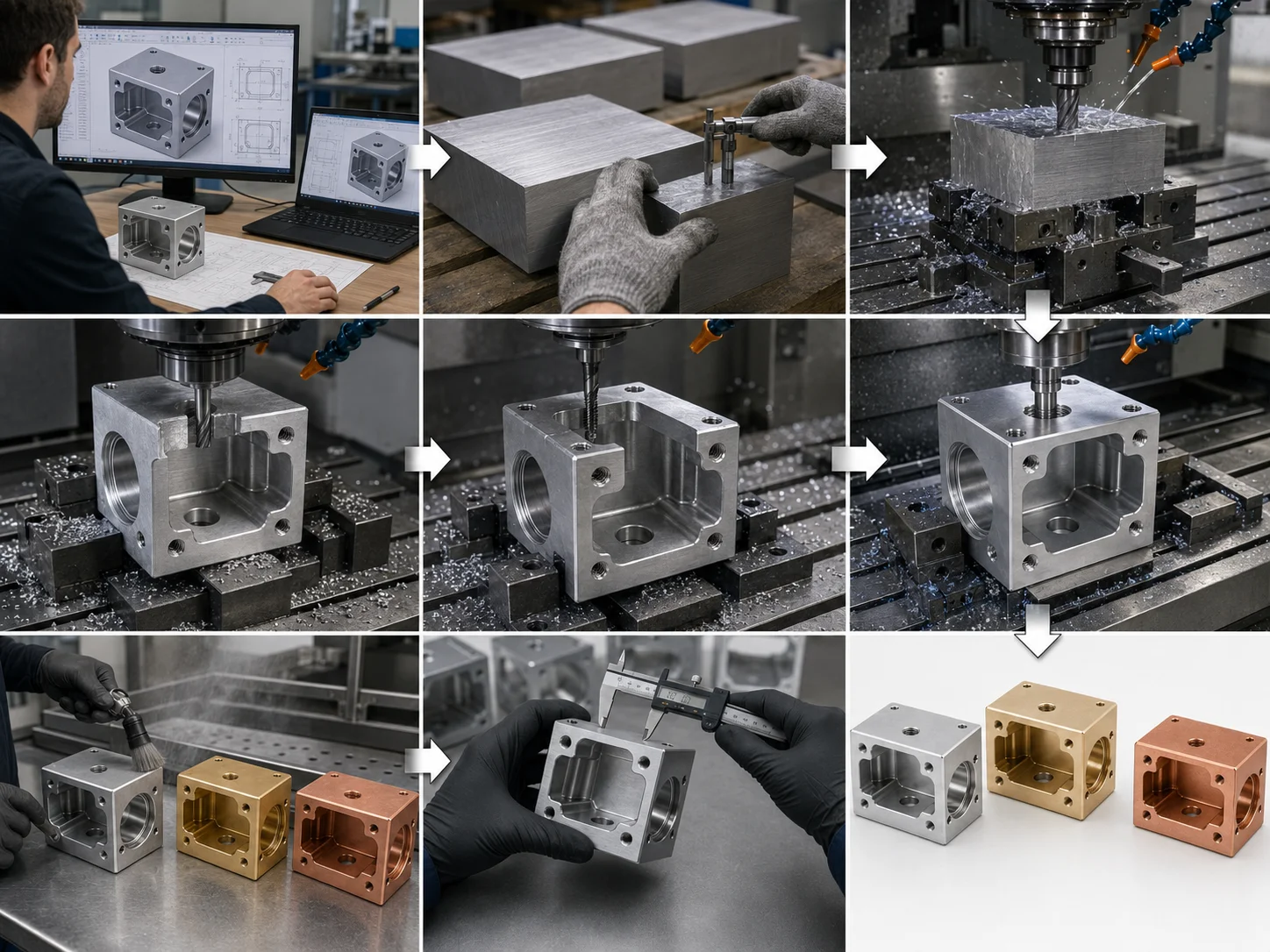

The typical process may include:

1.Raw-material preparation and blank inspection

2.Datum-surface machining and rough contour milling

3.Internal cavity and recessed-feature machining

4.Drilling, boring and thread tapping

5.Precision finishing of mounting and mating surfaces

6.Deburring, cleaning and surface treatment when required

7.Final dimensional and visual inspection

Three-axis, four-axis or five-axis machining can be selected according to part geometry and accessibility. The final production route is confirmed from the approved drawing rather than using one fixed process for every project.

3. Product Advantages

1.Integrated functional structure

Cavities, mounting faces, threaded ports and locating features can be combined in one component, reducing the need for additional connecting parts.

2.Flexible drawing-based customization

External dimensions, internal profiles, bore sizes, hole positions, thread types and surface requirements can be adapted to the customer’s design.

3.Assembly-oriented machining control

Critical mating surfaces and positioning features are processed from defined datums to support consistent installation with related components.

4.Support for different materials

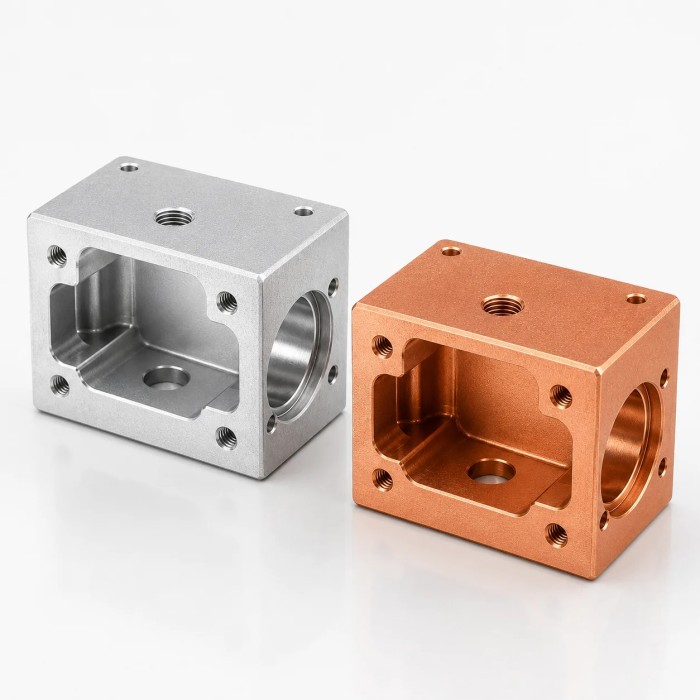

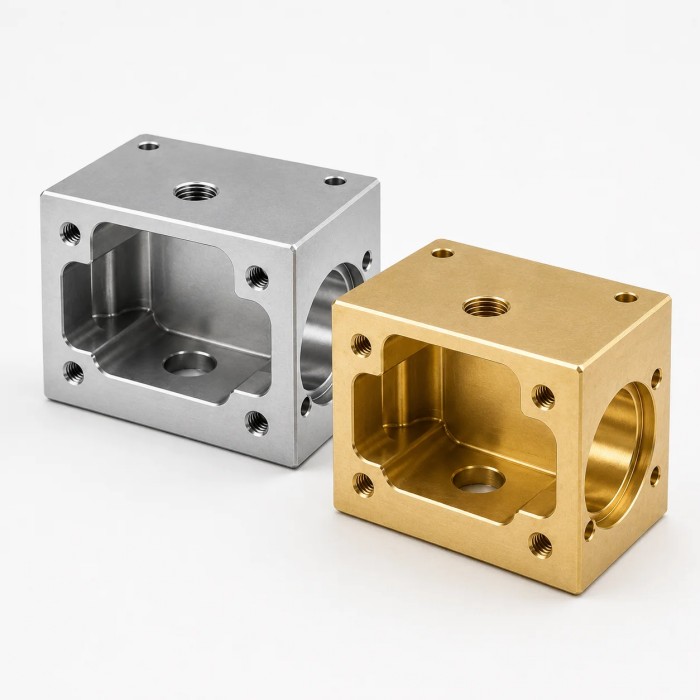

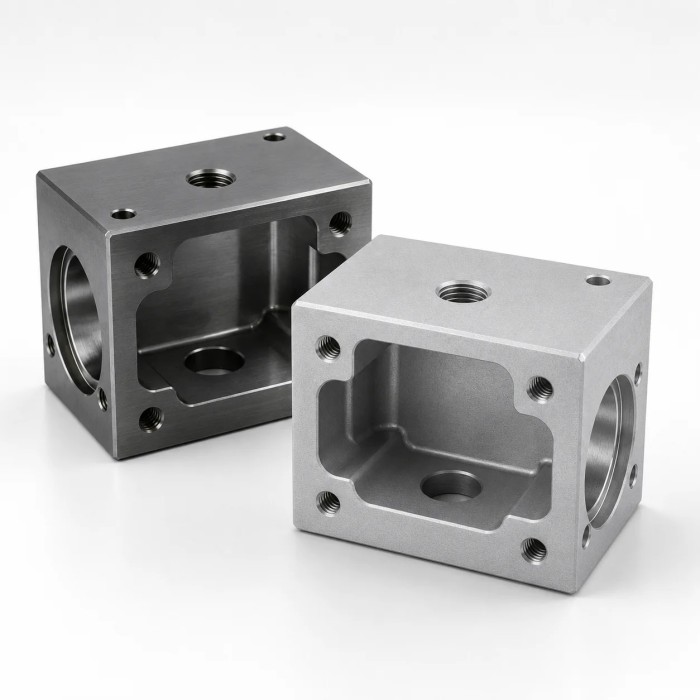

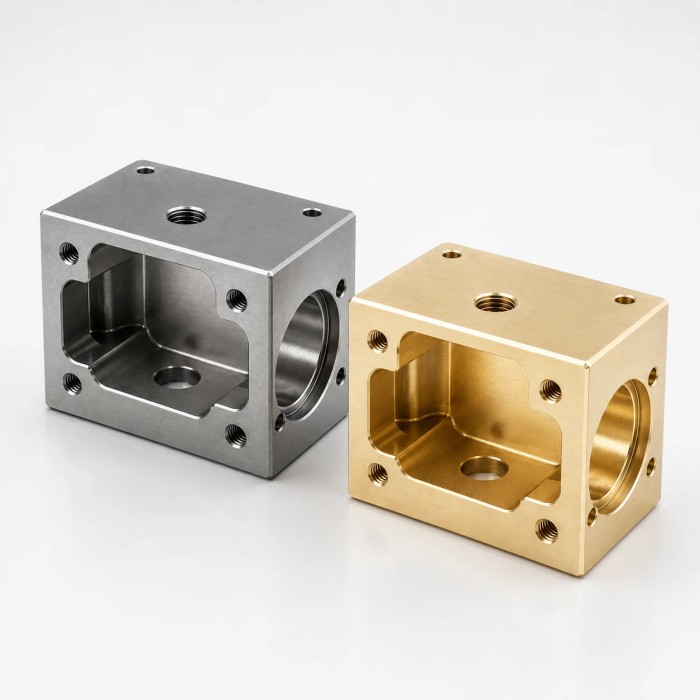

Aluminum alloys, stainless steel, carbon steel, brass and other machinable materials can be evaluated according to strength, weight and operating conditions.

5.Suitable for different purchasing stages

Prototype development, small-batch verification and repeat production are available for new projects and ongoing procurement.

6.Clear inspection requirements

Dimensions, threads, bore positions and surface conditions can be checked according to the approved drawing and agreed inspection plan.

4. FAQ

Q1: What files should be provided for quotation?

Please provide a 2D drawing or 3D model, together with the required material, quantity, tolerances, surface finish and inspection requirements.

Q2: Can the internal cavity and threaded holes be customized?

Yes. The cavity profile, machining depth, bore diameter, thread standard and hole locations can be produced according to the approved design.

Q3: Can you manufacture a prototype before volume production?

Yes. A sample or small trial batch can be arranged to verify structure, assembly and machining feasibility before repeat orders.

Q4: Are surface treatments available?

Yes. Suitable finishing options can be evaluated according to the selected material and application environment. The required treatment should be clearly marked on the drawing.

Q5: How is the CNC Machined Housing checked before shipment?

Key dimensions, mating surfaces, threaded features, bore locations and visible surface conditions are inspected according to the confirmed technical requirements.

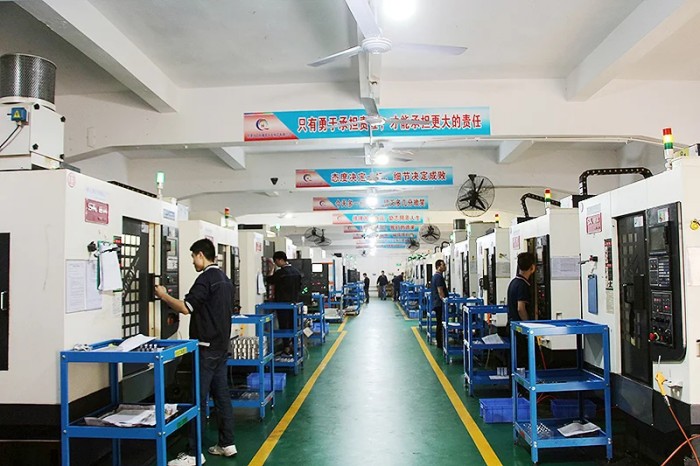

5. Direct Factory Advantages

Our factory focuses on engineering-oriented custom manufacturing, helping industrial buyers move from drawing review and prototype verification to stable repeat production with fewer communication gaps.
